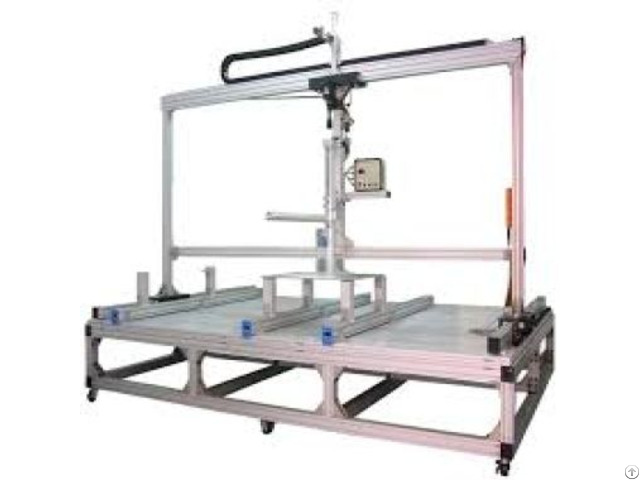

Pv Hail Impact Test Device - China

Standard Compliance

IEC 61215: Mechanical load testing for terrestrial photovoltaic modules.

UL 61730: Safety standards for photovoltaic modules under extreme weather conditions.

ASTM E1886: Impact resistance testing for building envelopes (adapted for PV applications).

IEC TS 63057: Hail impact simulation protocols for concentrated solar power systems.

Accessories Included

100x Ice Balls (25mm/35mm/50mm/75mm mix) Sample Clamping Kit (adjustable for frameless/framed modules) Software Suite: Real-time data acquisition & analysis tool.

Test report generator (PDF/Excel export).

Spare Parts Kit: 2x pneumatic nozzles, 5x O-rings, 1x calibration tool.

User Manual: Multilingual guide (printed + digital copy).

Technical Parameters

Parameter Specification

Impact Energy Range 0.5 J – 50 J (adjustable)

Ice Ball Diameter 25 mm, 35 mm, 50 mm, 75 mm (standard)

Test Temperature Range -40°C to +85°C (with optional chamber)

Sample Size Max.

2200mm × 1400mm (dual-station)

Power Supply 220V/380V, 50/60Hz, 3-phase

Air Compressor Requirement 0.6–0.8 MPa, 1.2 m³/min

Dimensions (L×W×H) 3500mm × 2000mm × 2500mm
