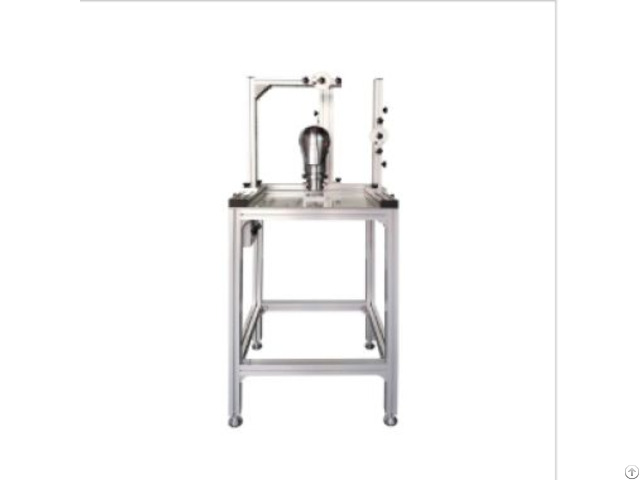

Standard Helmet Visual Field Test Device - China

Standards

EN 1078: 2023: Helmets for Pedal Cyclists, Skateboarders, and Roller Skaters CE Certification (Conformité Européenne) Equivalent Compliance: ASTM F1446 (Respiratory Protective Devices)

Accessories

Testing Kit: 2x Adult-Size Head Forms (56cm/58cm circumference).

5x Calibration Grade Angular Encoders.

Software Suite: License key for VisorTest Pro (Windows/macOS).

1-year free access to cloud-based vision analysis tools.

Calibration & Safety: NIST-traceable inclinometer.

2x Safety Glasses (EN 166 rated).

Maintenance Kit: Spare drive belts and bearings.

Machine cleaning solution (non-corrosive).

Documentation: Multilingual quick-start guide (printed + digital).

Compliance certificates for EN/ISO standards.

Technical Parameters

Parameter Specification

Field of View Upper ≥25°, Lower ≥45°, Lateral ≥105°

Angular Accuracy ±0.5° (ISO 17025 traceable)

Measurement Range 0–360° (horizontal/vertical)

Head Model Quick-swap anthropomorphic mandible

Power Supply 220V AC, 50/60Hz (single-phase)

Dimensions 800mm (W) × 600mm (D) × 1.500mm (H)

Weight 120 kg (net)
