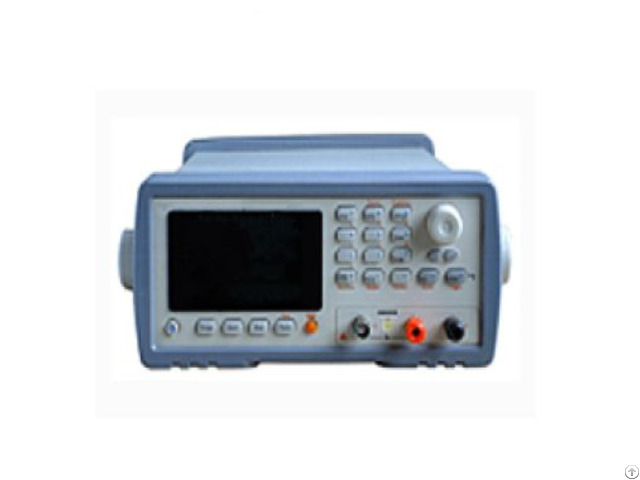

Photovoltaic Module Insulation Resistance Test Device - China

Standard

IEC 61215: Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval UL 61730: Safety Standard for Photovoltaic Modules ISO 17025: General Requirements for the Competence of Testing and Calibration Laboratories CE Certification (Conformité Européenne)

Accessories Included

Testing Kit: 4x insulated test probes (10 kV rated).

10x alligator clip leads (red/black).

Software Suite: License key for InsulationAI Pro (Windows/macOS).

1-year free access to cloud-based data analytics.

Calibration & Safety: NIST-traceable resistance standard (1 GΩ, 10 GΩ).

Explosion-proof gloves (Class 00 - 3 pairs).

Maintenance Kit: Spare fuses and probe tips.

Cleaning solution for optical components.

Documentation: Multilingual quick-start guide (printed + digital).

Compliance certificates for IEC/UL/ISO standards.

Technical Parameters

Parameter Specification

Insulation Resistance 100 kΩ–10 TΩ (10⁵ Ω–10¹³ Ω)

Leakage Current 10 nA–20 mA (auto-ranging)

Test Voltage 1.0–1.000 VDC (0.1 V steps <100 V, 1 V steps ≥100 V)

Voltage Accuracy ±1% (at 1.000 VDC)

Measurement Speed 55/25/3 readings/second (high/medium/full)

Max Charging Current 30 mA ±5 mA

Power Supply 100-240V AC, 50/60Hz (universal adapter)

Dimensions 300mm (W) × 250mm (D) × 150mm (H)

Weight 5 kg (net) / 7 kg (gross)
