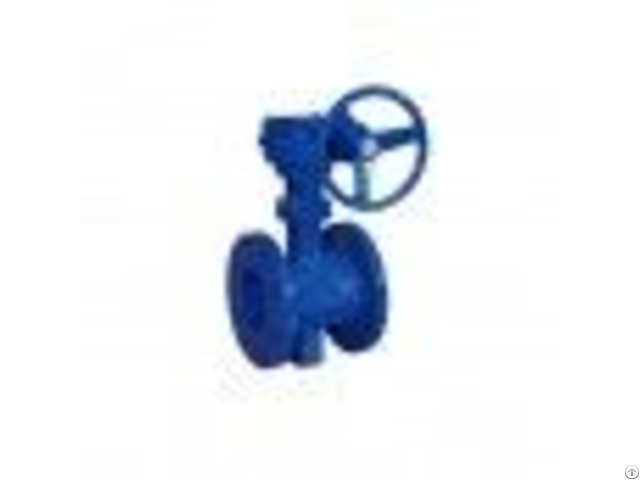

D343x F 10 10q Worm Gear Drive Triple Eccentric Soft Sealing Butterfly Valve - China

Product Description

Medium temperature: -10-200℃

Medium: clean water, sewage, oil

Caliber: DN100-2000

Pressure: 1.6MPa

Connection method: flange

Body material: HT250 QT450-10 Material of main parts

Part Name Valve body Butterfly board Bracket Pressure ring Stem Sealing ring

D343X/F-10 HT250QT450-10 QT450-10 HT200 QT450-10 35304 Nitrile rubber NBR Performance specification

Model Nominal pressure (MPa) Butterfly board corner Test pressure Applicable temperature (℃) Applicable medium Strength (water) Seal (water) D343X/F-10 1.6 90° 2.4 1.8 -10~200 Clean water, sewage, oil Standards and norms

Design and manufacture Structure length Connecting flange Test and inspection

GB12238 GB12221 GB/T17241.6 GB/T13927 D343X/F-10/10Q external dimensions and connection dimensions

DN (mm) L H0 D D1 b Z-Φd

100 190 239.5 220 180 24 8-Φ19

150 210 302 285 240 26 8-Φ23

200 230 353 340 295 28 8-Φ23

250 250 407 390 350 28 12-Φ23

300 270 466 445 400 28 12-Φ23

350 290 510 505 460 30 16-Φ23

400 310 548 565 515 32 16-Φ28

450 330 573 615 565 32 20-Φ28

500 350 646 670 620 34 20-Φ28

600 390 688 780 725 36 20-Φ31

700 430 865 895 840 40 24-Φ31

800 470 914 1015 950 44 24-Φ34

900 510 971 1110 1050 46 28-Φ34

1000 550 1115 1230 1160 50 28-Φ37

1200 470 1251 1455 1380 56 32-Φ40

1400 530 1441 1675 1590 62 36-Φ43

1600 600 1606 1915 1820 68 40-Φ49

1800 670 1873 2115 2020 70 44-Φ49

2000 760 1996 2325 2230 74 48-Φ49
