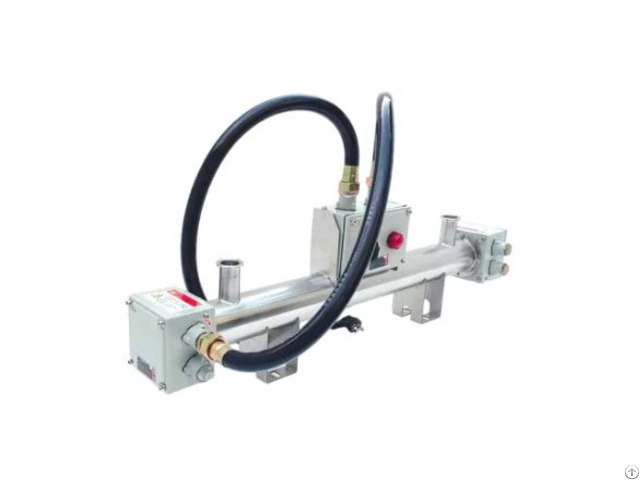

Explosion Proof Uv Sterilizer - China

The explosion-proof UV sterilizer is a high-performance ultraviolet disinfection system specifically engineered for hazardous environments where flammable gases, vapors, or dust may exist.

Designed for continuous in-line treatment, it ensures safe and efficient microbial control without introducing chemicals into the process system.

As a critical solution for industrial water treatment and process safety, this explosion proof UV sterilizer is widely used in chemical plants, oil & gas facilities, pharmaceutical production, and other high-risk zones requiring reliable hazardous area UV disinfection.

It integrates seamlessly into pipeline systems, offering non-chemical, eco-friendly sterilization while maintaining operational safety standards.

Key Advantages of Explosion-Proof UV Sterilization System

● Compliant Explosion-Proof Design: The entire unit is certified to Ex d IIB T4 Gb explosion-proof standards.

The cavity is constructed of 304 stainless steel with an explosion-proof structure (wall thickness ≥6mm), capable of withstanding an explosion pressure of 0.4MPa.

Electrical components (ballast, junction box) are explosion-proof, and all gaps are filled with explosion-proof sealant to prevent electrical spark leakage.

Cable interfaces are equipped with explosion-proof glands to prevent flammable gases from entering the equipment, making it suitable for environments with Class IIB flammable gases such as methane and propane.

● High-Efficiency Sterilization with Low Flow Rate: One 80-watt low-pressure UV lamp forms a uniform radiation zone within a 900mm cavity.

Combined with a flow-guiding structure, this ensures sufficient contact between the water flow and UV light (residence time ≥8 seconds), achieving a kill rate of ≥99.9% against E.

coli, Salmonella, and influenza viruses.

With a processing flow rate of 1-3 m³/h, it perfectly matches the disinfection needs of low-flow water use in explosion-proof areas (such as equipment cleaning and localized cooling).

Explosion-proof quick-connect for convenient installation: Utilizes explosion-proof certified quick-connect interfaces (compatible with DN32-DN40 pipes).

The interfaces feature built-in double-layer oil-resistant explosion-proof sealing rings.

Simply align the clips and rotate to lock them in place.

Installation/disassembly can be completed by a single person within 3 minutes, requiring no welding or threaded tightening, avoiding mechanical sparks in explosion-proof areas and simplifying the equipment disassembly and assembly process for later maintenance.

● Durability in harsh environments: The 304 stainless steel housing is resistant to acid and alkali corrosion (suitable for water with pH 4-9).

The surface is treated with anti-static spraying (surface resistance ≤10⁸Ω) to prevent dust accumulation and static electricity generation.

With an IP66 protection rating, it can withstand the moisture and dust commonly found in explosion-proof areas.

The lamp life is ≥8000 hours, reducing the safety risks associated with frequent replacements.

● Dual Safety Protection: An integrated explosion-proof door interlock device automatically cuts off power when the chamber cover is opened, preventing UV leakage and electrical sparks.

The ballast features over-temperature (≥75℃) and over-current protection, immediately shutting down in case of abnormalities.

Combined with an explosion-proof observation window (tempered borosilicate glass), the lamp status can be checked without opening the cover, further reducing operational risks.
