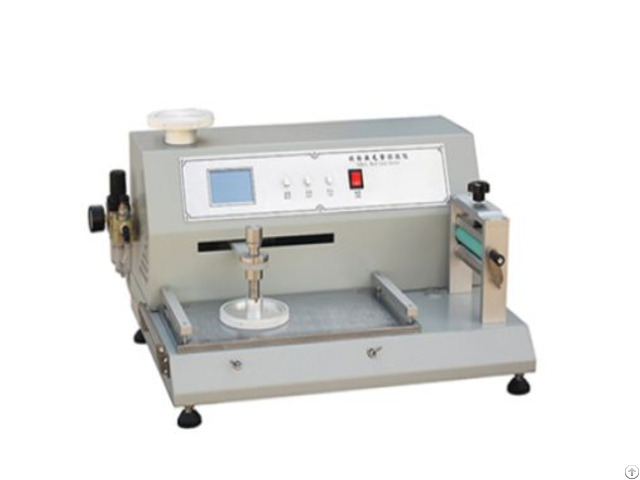

Fabric Fiber Shedding Degree Tester Friction - China

Instrument Testing Principle

Lay the specimen flat and fix it on the holder.

Make the wet abrasive attached to the friction head perform reciprocating friction movements on the specimen under the specified load for a specified number of times with a certain stroke.

Then compare it with the standard sample and visually rate the degree of fibers adhered to the abrasive to characterize the degree of fiber shedding of the specimen.

It is suitable for factories, scientific research institutes, colleges and universities, import and export commodity inspection, textile testing in various provinces and cities.

Features

Touch screen controller: The number of frictions can be set arbitrarily.

Backup mechanical buttons for buttons in the touch screen: They can be used simultaneously, which is convenient and fast.

Pneumatic holder for specimen installation: Convenient and fast.

Equipped with a calender for adjusting the moisture content of the abrasive: The roll-off rate can be adjusted.

Complies with the standard: Appendix A of GB/T 40270 - 2021 Parameters

Stroke of the friction head: (200 ± 2) mm Reciprocating speed: 30 times/min Diameter of the circular friction head: (90 ± 1) mm Outer diameter of the fixed clamp ring of the friction head: (120 ± 0.5) mm, inner diameter: (90 ± 0.5) mm Diameter of the test washer: (113 ± 0.5) mm Foam plastic washer: Diameter 105 mm, thickness 8 mm, unit area mass approximately 270 g/m² Total mass of the friction load: (595 ± 7) g Sandpaper: 600 - grit aluminum oxide water - washable sandpaper Power supply: AC 220V, 50Hz
