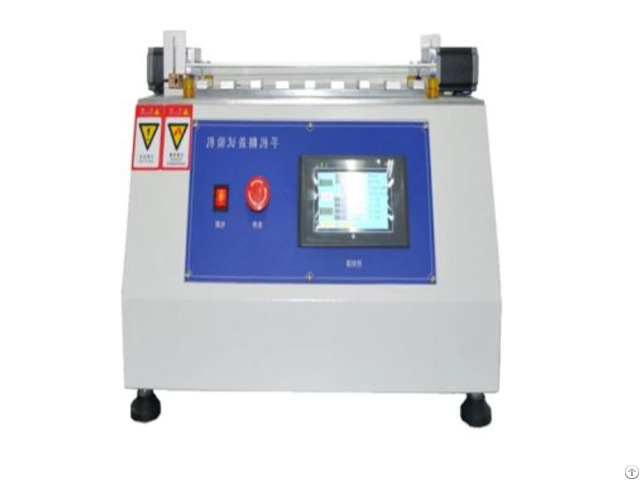

Flip Phone Endurance Testing Device - China

Product Introduction:

Mobile phone clamshell testing machine is a special equipment for mobile phone clamshell fatigue test.

Its structure design is reasonable, unique, small volume, suitable for limited space location or in the temperature control box test environment.

It has full applicability for different models of mobile phones.

The sensor is used to detect the phone flip count directly.

Stable operation, low noise, maintenance-free.

Standards:

GB/T 2423.2-2008

IEC 60068-2-1

IEC 60068-2-2

JEDEC JESD22-B111A

ASTM F1977 Product Advantages:

Specifically designed for highly accurate and repeatable mobile phone clamshell fatigue testing.

Reasonable, unique, and compact structural design, ideal for limited spaces or integration into environmental chambers.

Offers full applicability for testing a wide range of mobile phone models.

Utilizes a sensor for direct and precise detection of the phone flip count.

Ensures stable operation with low noise output, minimizing disruption in the lab.

Designed for low maintenance, contributing to continuous testing capabilities.

Features multiple test stations (4 stations) for increased testing throughput and efficiency.

Equipped with a user-friendly touch screen for intuitive operation.

Controlled by a Siemens PLC and driven by a stepper motor for high precision and reliability.

Provides an automatically adjustable swing arm angle (0-180 degrees) for comprehensive testing.

Includes anti-static fixtures to protect test samples.

Technical parameters:

Number of stations : 4 / set Operation mode: touch screen Control element: Siemens PLC Action execution component: stepper motor Swing arm Angle range : 0——180 degrees (automatic adjustment) Clamshell beat : 50——30 times/min (automatic adjustment) Counter : 6 bits (built-in) Fixture: anti-static fixture
