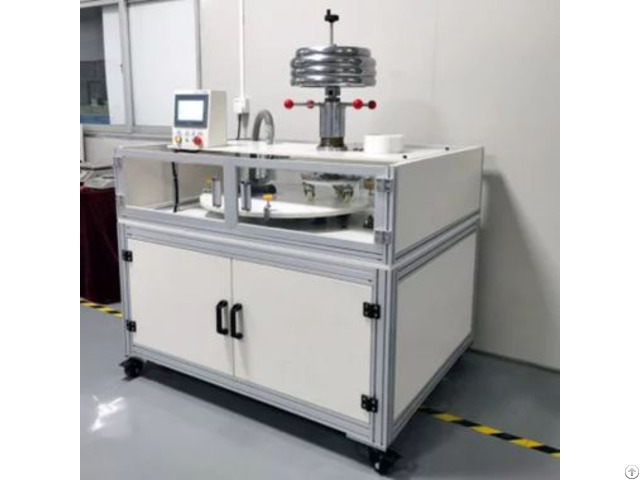

Floor Caster Wear Tester - China

Meet the standard:

GB/T 11982.2 - GB/T 4085 - BS/EN 425 - ISO 4918-2009 ASTM D6962 BS EN 425-2002 BS EN 985-2001 ISO 10581-2011 ANSI-NALFA-LF-01-2008.3.6 / ANSI-NALFA-LF-01-2011 Application:

The chair casters that can be moved and adjusted are controlled by the floor covering castor wear resistance tester.

The resilient floor and laminated floor covering are placed on the test bench.

The castor is started by the castor floor testing machine and acted on the resilient floor and laminated floor covering placed on the test bench.

Stop automatically after the specified test time or number and take off the sample to see its change! Technical parameters:

Host size: Length 1500mm* Width 1700mm*1620mm Floor replacement base: 1350mm*1350mm(square, adjustable within this range) Rotary diameter: 950mm Total load load weight: 0-1500 lb (Note: 1 lb =0.4536 kg) Rotary lifting distance: 400mm Rotation speed adjustment range: 0-60 RPM, platform speed: (19±1)r/min, rotation (180±10)S after the platform stops and remains stationary (5±2)S, and then reverse operation.

Turntable counting range: <1 million times Turntable tooling card number: 3 Wheel: Caster wheel diameter: ￠50±2mm, width 23±3mm, crank distance: 32±2mm Wheel hardness: Shore A(95±5)mm Distance from caster to platform: (198±1)mm The distance between the three casters is: (130±1)mm, the spacing is 120°, and the installation distance between any two casters is: (225±5)mm
