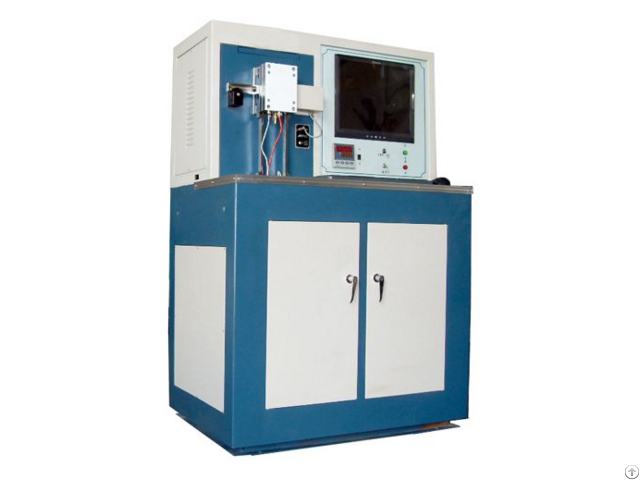

Friction And Wear Tester - China

This friction and wear tester is designed and manufactured in accordance with the national standard GB/T 12444-2006 “Test Method for Sliding Wear of Metal Materials – Ring-and-Block Test Method” and fully complies with this standard.

Applications

Material Evaluation: Determine friction coefficients and wear rates of metals and alloys.

Lubricant Testing: Assess performance of oils, greases, and solid lubricants under sliding conditions.

Surface Treatment Assessment: Evaluate coatings, plating, and surface-hardened layers for durability.

Mechanical Component Testing: Simulate real-world contact conditions for bearings, gears, and other metal parts.

Research and Development: Support tribology studies, material optimization, and failure analysis.

Quality Control: Ensure consistency and reliability of metal products in manufacturing.

High-Temperature and Extreme Conditions: Test performance under controlled temperature, humidity, or corrosive environments.

Parameters

Parameter Specification

Normal force load range 20–2000 N, steplessly adjustable

Test force accuracy better than ±1%

Long-term automatic force holding relative error ≤±1% FN

Test force zeroing error ≤±1% FN

Loading system automatic

Spindle speed range 5–3000 r/min, steplessly adjustable

Speed control accuracy ≤±2 r/min

Test cycle (revolutions) range 1–10⁹, freely settable

Test time range 1–9999 s (min)

Temperature control range ambient to 300°C

Additional features Automatic force loading, stepless force adjustment, spindle speed controlled via AC servo motor, real-time display of force, friction, speed, revolutions, time, and plotting of curves

Test conditions dry friction or lubricated (oil) conditions available

Force control computer-controlled, automatic loading

Data processing Dedicated control system with computer for full control and real-time display of all parameters, automatic plotting and recording of friction force–time, coefficient of friction–time, temperature–time curves, and report generation; operators can set all parameters via computer interface

Friction pair ring-and-block

Power supply 220 V, 50 Hz

Ring dimensions Outer diameter 49.22±0.5 mm, thickness 13.06 mm, width 10 mm; coaxiality deviation of outer to inner surface <0.01 mm; surface roughness Ra ≤0.4 (or customized to user samples)

Block specimen size 19.05 × 12.32 × 12.32 mm (or according to user sample)

Software free debugging, lifetime free upgrades

Friction force load sensor max 300 N

Maximum measured friction torque 5 N·m

Tester dimensions 780 × 980 × 1610 mm

Tester weight approximately 400 kg
