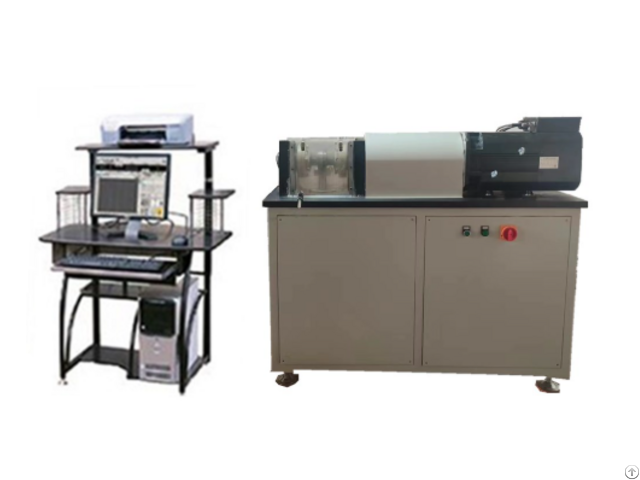

Sliding Bearing Fatigue Tester - China

The sliding bearing fatigue testing machine is an important testing device, mainly used to evaluate the fatigue life and performance of sliding bearings under specific conditions.

Application

Materials Development: Evaluate the fatigue properties of new materials to guide material optimization design.

Bearing Performance Evaluation: Test different types of sliding bearings under simulated real-world working conditions.

Lubricant Performance Evaluation: Investigate the impact of different lubricants on bearing fatigue life.

Process Parameter Optimization: Explore the effects of varying process parameters on bearing fatigue life by changing experimental conditions.

Standards

(1)ASTM D2596：Standard Test Method for Measurement of Extreme-Pressure Properties of Lubricating Grease (Four-Ball Method) (2)ASTM D2783：Standard Test Method for Measurement of Extreme-Pressure Properties of Lubricating Fluids (Four-Ball Method) (3)GB/T 18325.1-2001：Plain bearings — Bearing fatigue — Plain bearings in test rigs and in application under conditions of hydrodynamic lubrication。 Parameters

Number Project Name Specifications and indicators

1 Maximum test force 20KN

2 Maximum axial loading force 1KN

3 Spindle speed adjustment range 200—2800r/min

4 Temperature measurement range Room temper-300℃

5 Friction torque measurement range 0-50N·m

6 Input Voltage alternating current：380V±10%

7 input power 11KW
