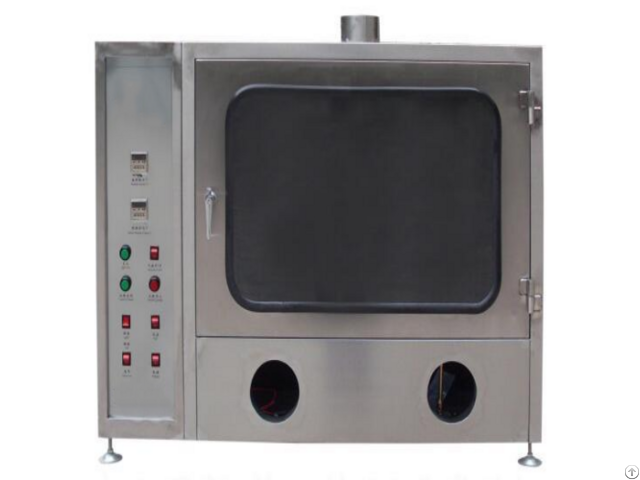

Automotive Wire Combustion Tester - China

Application

(1) Automotive wire harnesses – assess flame resistance for vehicle safety.

(2) Low-voltage electrical cables – verify compliance with combustion standards.

(3) R&D laboratories – evaluate new wire materials for fire safety.

(4) Production quality control – ensure each batch meets flammability requirements.

(5) Certification testing – for ISO, SAE, DIN, and QC/T compliance verification.

Standards

(1) QC/T703-2005 – Automotive electrical wire flame resistance standard

(2) SAE J1128-2005 – Automotive wire flammability test

(3) DIN 72551 – Wire and cable combustion test

(4) ISO 6722 – Road vehicle electrical cables flame resistance Parameters

Parameter Specification

Test Chamber Enclosed; dimensions: 650 × 450 × 900 mm; stainless steel with matte black background

Fuel Gas High-purity propane or liquefied petroleum gas

Test Sample Length 600 mm (24 in)

Sample Clamp Angle 45°

Bunsen Burner Tube Nominal diameter 9 mm; outer flame: 100 mm (4 in); inner flame: 50 mm (1/2 in); inner flame temperature: 900 ±50°C

Burner Position Below the sample, perpendicular to sample axis

Ignition Automatic

Vertical Flame Duration 15 s

Temperature Measurement High-precision K-type thermocouple with TES-1310 temperature meter

Exhaust System Ventilation fan removes combustion gases after test

JIS3005 Horizontal Combustion Fixture Included; horizontal combustion test setup

Horizontal Test Chamber 305 × 355 × 610 mm

Horizontal Sample Length 300 mm

Horizontal Sample Placement Horizontal

Horizontal Flame Duration 30 s

Horizontal Burner Tube Diameter 10 mm; inner flame: 35 mm; outer flame: 130 mm

Stop Method Automatic when preset data reached
