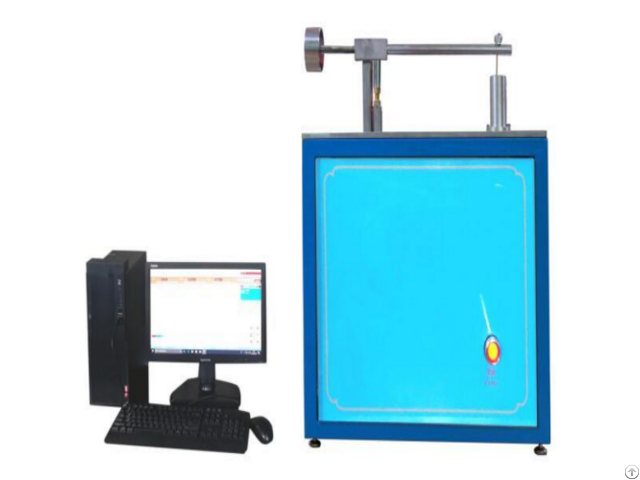

Automotive Wire Puncture Tester - China
price: contact company for price
The Automotive Wire Puncture Tester is designed to evaluate the insulation strength of automotive wires.
It is an essential testing instrument for manufacturers to ensure wire quality and compliance with safety standards.
Application
(1) Automotive wire production lines – monitor insulation strength during manufacturing.
(2) Research and development – verify insulation performance of new wire materials.
(3) Quality control – ensure each batch of wires meets SAE safety requirements.
(4) Certification testing – comply with automotive electrical wire standards.
(5) Electrical component testing – assess wires used in harnesses and control systems.
Standards
(1) SAE J1128-2005 – Automotive wire insulation strength and puncture resistance Parameters
Parameter Specification
Applied Force Range 12–20 kg, 1–200 kg
Force Application Speed Adjustable via potentiometer or controlled automatically by software
Test Report Generates test report files
Drive Type Standard variable-speed motor or servo motor
Force Application Rate 2.3 kg/min
Steel Rod Diameter 3 mm
Test Voltage 24 V
Detection Action Current 5 mA
Power 500 W
Power Supply AC 220 V
Company Contact:
- Posted By: Qinsun Instruments Co., LTD
- Phone: +8618501763615
- Address: Minhang District, Shanghai , China
- Email:
- Website: https://www.qinsun-lab.com/
Published date: April 16, 2026
- Business Description: Qinsun Instrument focus on creative high quality textile testing instrument, with our powerful teamwork,constantly innovation, practical efficiency and excellent service, our mission is to supply our customers and distributors with the integrated solutions of lab testing.
