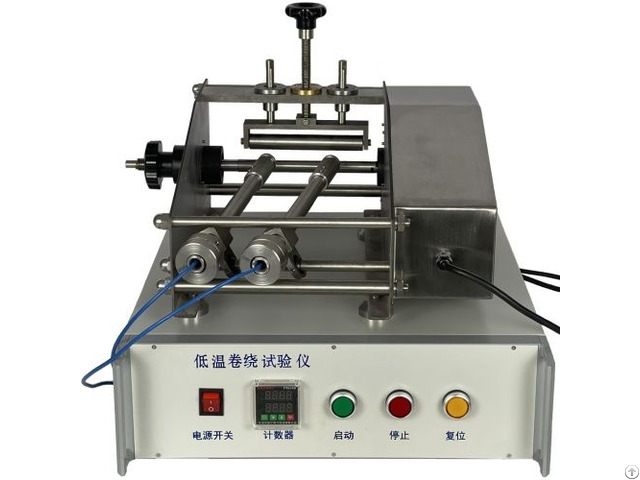

Automotive Wire Low Temperature Winding Tester - China

Application

Low-temperature adaptability testing of wires, cables, and electrical components.

Assessment of electrical insulation, conductor performance, and mechanical durability at sub-zero temperatures.

Suitable for quality control in electrical, electronics, and instrumentation industries.

Evaluates product reliability during storage, transportation, and operation in extreme temperature environments.

Can be used to assess resistance to corrosive conditions when combined with chemical exposure tests.

Standards

GB/T 2951.14-2008 (Low-temperature dynamic bending of wires and cables) GB/T 5023.1-2008 (Electric cables – General test methods) ISO 6722 (Road vehicles – Electrical cables) ISO 14572 (Automotive wire bending tests) ISO 19642 (Low-voltage insulated cables – Cold performance) SAE J1128 (Low-voltage automotive cables) QC/T 730 (Automotive wire testing) JASO D611-2009 (Japanese automotive wire standard) Parameters

Parameter Specification

Working Temperature -40℃ ±1℃

Mandrel Diameter D ≈ 4–5 × wire diameter

Low-Temperature Sample Diameter Φ2.5–12.5 mm

Winding Speed 1 turn / 6 seconds

Samples per Run 1–2 pieces

Winding Rod Diameters Φ2.5, Φ4, Φ5, Φ6, Φ7, Φ10, Φ12, Φ14, Φ16, Φ18, Φ20, Φ24, Φ32, Φ35, Φ38, Φ50 mm (17 rods total)

Through-Line Sleeves Φ1.2, Φ2, Φ2.5, Φ3.5, Φ5, Φ6, Φ10, Φ12, Φ14.5, Φ16 mm

Sample Winding Turns 2–5 turns; winding time set according to mandrel diameter (max 36s)

Operation Mode Electric

Power Supply AC 220V ±10%, 20A, 50Hz
