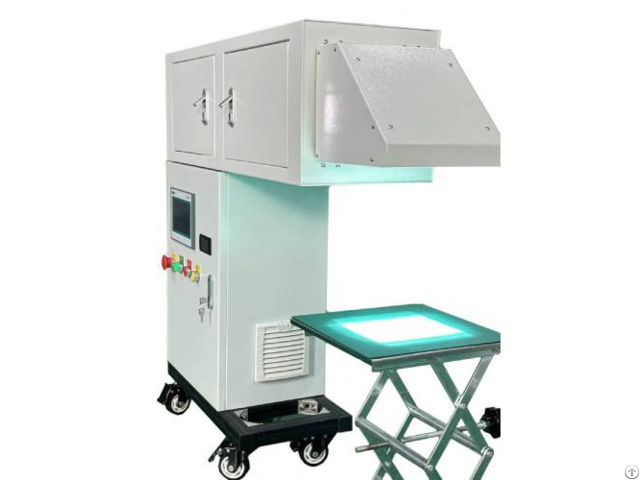

Solar Simulator And Test Bench - China

The Solar Simulator and Test Bench is a high-precision laboratory device designed to simulate natural sunlight for testing solar products such as solar cells, photovoltaic modules, and light-sensitive materials.

You can use it to replicate solar intensity, spectral distribution, and illumination under various environmental conditions, including different latitudes, seasons, and weather.

Its high uniformity, stability, and adjustable irradiance make it ideal for R&D, production, and quality control in the solar industry, providing accurate and reproducible data.

Standards

(1) IEC 60904-9 – Photovoltaic Devices: Requirements for Solar Simulators (2) ASTM E927 – Laboratory Simulation of Solar Radiation (3) IEC 60904-3 – Measurement of Photovoltaic Current-Voltage Characteristics (4) ISO 9060 – Solar Irradiance Measurement Standards (5) ASTM G173 – Reference Solar Spectra for Testing Technical Parameters

Parameter Details

Light Source Type Short-arc high-pressure xenon lamp

Light Source Lifetime 1000h+

Light Source Warranty 800h

Number of Light Sources Matched according to irradiation area and irradiance

Irradiation Area D100mm, D300mm, D500mm, D600mm, D700mm, D900mm (custom sizes available)

Maximum Irradiance in Effective Spot ≥9W/mm²

Minimum Irradiance in Effective Spot ≥2W/mm²

Average Irradiance in Effective Spot ≥4W/mm²

Focus Distance ≤2m

Reflector Aperture – For D300mm irradiation area: ≥300mm- For D600mm irradiation area: ≥500mm- For D900mm irradiation area: ≥890mm

Spectral Range 300–1700nm (optimized)

Light Emission Direction Horizontal output

Spectral Matching Degree Grade A (AM1.5G)

Instability LTI ≤ ±2%; Grade A

Equipment Dimensions Approximately 4m × 1.5m × 2.6m (L×W×H)

Arrangement For ≥13 lamp heads: at least 1 head faces directly forward, with outer heads evenly distributed around the perimeter
