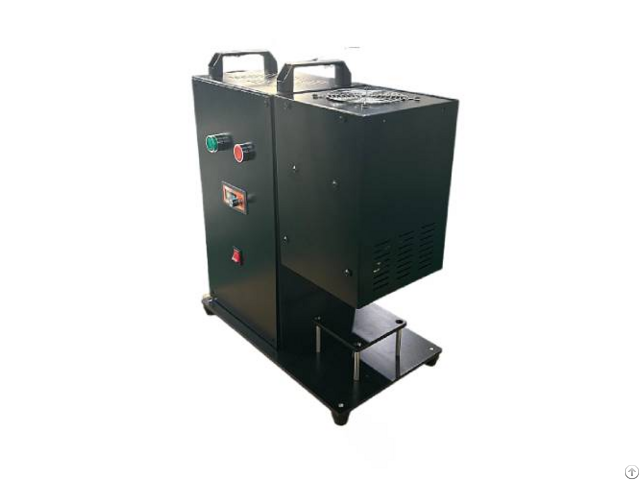

Small Solar Simulator - China

Applications

Photovoltaic Device Testing: Measure short-circuit current (Isc), open-circuit voltage (Voc), fill factor (FF), and photovoltaic conversion efficiency (η) for solar cells or modules.

Photocatalysis & Chemical Research: Conduct photocatalytic degradation, photochemical synthesis, and material response experiments under controlled light conditions.

Material Weathering Assessment: Simulate prolonged sunlight exposure to evaluate aging resistance of coatings, plastics, and cosmetics.

R&D of Photovoltaic Materials: Test new solar materials such as DSSC, PSC, and perovskite under standardized solar spectra.

Ground Testing for Spacecraft: Provide irradiation for solar sensors, thermal control systems, and satellite component verification under near-space conditions.

Standards

(1) IEC 60904-9 – Photovoltaic Devices: Requirements for Solar Simulators (2) ASTM E927 – Laboratory Simulation of Solar Radiation (3) IEC 60904-3 – Measurement of Photovoltaic Current-Voltage Characteristics (4) ISO 9060 – Solar Irradiance Measurement Standards (5) ASTM G173 – Reference Solar Spectra for Testing Technical Parameters

Performance Item Specification Notes

Spectral Matching AM1.5G, Class A (≤±10% deviation) Ensures output spectrum closely replicates sunlight

Irradiance 350–1000 W/m², Adjustable Supports 0.35–1 sun range for diverse testing

Spot Uniformity ≤±2% Uniform light distribution across the test plane

Light Source Type Xenon lamp or LED array LED: longer lifespan (~10, 000 hours) and higher stability

Operating Mode Continuous steady-state (CW) Eliminates transient errors from pulsed sources

Illuminated Area D50mm–D200mm Customizable based on testing requirements

Power Supply 220 V ±10% AC, 50/60 Hz Standard laboratory power input

Cooling System Air-cooled Maintains stable light output and extends lamp lifespan

Equipment Dimensions Approx.

0.6 × 0.4 × 0.5 m Compact design for laboratory tables
