Automotive Wire Hot Water Resistance Tester - China
price: contact company for price

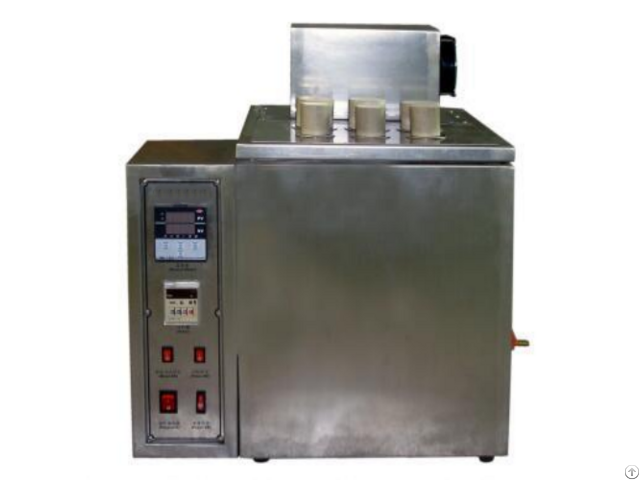

The Automotive Wire Hot Water (Salt Water) Resistance Tester is engineered for long-term (over 14 days) testing of automotive and locomotive wires under DC voltage and salt water immersion conditions.
This system evaluates insulation resistance, voltage endurance, and corrosion resistance of wires exposed to hot water and saline environments.
It ensures the durability and safety of wiring systems in automotive and industrial applications.
Application
The tester is primarily used in the following applications: Automotive primary wires and battery cables Locomotive and industrial control wires Connector and harness testing under hot water or saline immersion Long-term durability assessment under DC voltage and corrosive environments Verification of automotive wiring harnesses exposed to heat, water, or saline conditions Standards
This tester complies with and supports the following international standards: ISO 6722 — Road Vehicles: Low Voltage Primary Cables SAE J1128 — Low Voltage Automotive Cables QC/T 730 — Automotive Wire Test Method JASO D611 — Automotive Wire Electrical Performance EN 50305 — Electrical Test for Automotive Cables EN 50395 — Long-term Electrical Performance of Automotive Wires IEC 60811 — Electric and Optical Fiber Cables – Test Methods Parameters
Item Specification
Power supply 380 V, 50 Hz
Heating power 6000 W (salt water type)
Temperature range Room temperature ~ 99.9°C
Control accuracy ±0.2°C, PT100 corrosion-resistant thermocouple
Tank material Corrosion-resistant ceramic, Ø700 × 420 mm
Tank enclosure PVC panel surrounding the tank
Overall dimensions 800 × 800 × 600 mm (L × W × H)
Stirring method Motor-driven, non-metallic stirrer
Water level control Corrosion-resistant ball valve, automatic water replenishment pump
Optional 48 V DC power supply
Optional High-voltage DC stability tester (DC 0~5 kV)
Company Contact:
- Posted By: Qinsun Instruments Co., LTD
- Phone: +8618501763615
- Address: Minhang District, Shanghai , China
- Email:
- Website: https://www.qinsun-lab.com/
Published date: April 16, 2026
- Business Description: Qinsun Instrument focus on creative high quality textile testing instrument, with our powerful teamwork,constantly innovation, practical efficiency and excellent service, our mission is to supply our customers and distributors with the integrated solutions of lab testing.
