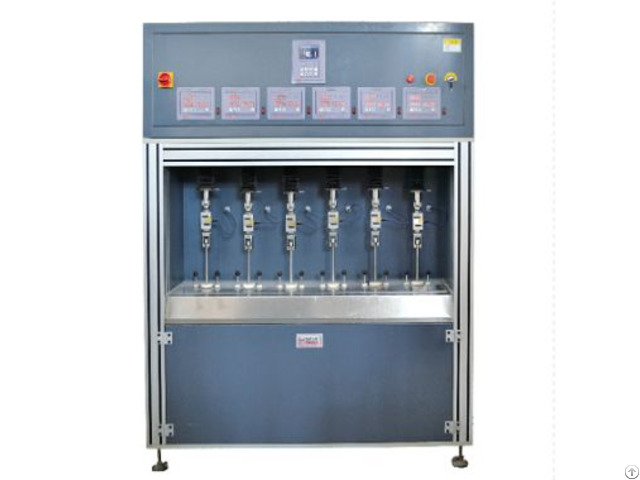

Full Notch Creep Testing Machine - China

Standard

ISO 16770: Exclusively designed for full-notch creep testing (FNCT) of thermoplastics under sustained stress.

ASTM D2990: Configurable for tensile, compressive, and flexural creep testing of polymers and composites.

ISO899 ISO3501 Product Advantages

1 - Uncompromising Precision Independent 6-Zone Control: Each station operates with ±1% force accuracy (0–2.000N) and ±0.1°C temperature stability.

Hybrid Loading System: Combines motorized force application with manual fine-tuning via touchscreen-guided weights.

2 - Versatile Testing Environments Dual Bath Compatibility: Switch between water (up to 95°C) and oil (up to 150°C) baths for high-temperature polymer analysis.

Expanded Force Capacity: Upgradeable to 4.000N max.

load per station for heavy-duty applications.

3 - Intelligent Monitoring Auto-Level Sensing: Real-time solution height detection prevents test interruptions from evaporation or leaks.

Visual Alerts: Touchscreen displays color-coded status indicators for all stations.

4 - Future-Ready Design Modular Architecture: Add stations or upgrade controllers without replacing the entire system.

Multi-Language Interface: Operate in English, German, Chinese, or Spanish.

Technical Parameters

Specification Details

Stations 6 fully independent test positions

Force Range (per station) 0–2.000N (standard) / 0–4.000N (optional)

Temperature Control Water: 40–95°C

Force Accuracy ±1% FS (0.5% with calibration kit)

Power Supply 220V/50Hz (110V/60Hz available)

Bath Capacity 15L per station (90L total)

Dimensions (W×D×H) 1.800mm × 750mm × 1.650mm

Weight 380 kg (net)
