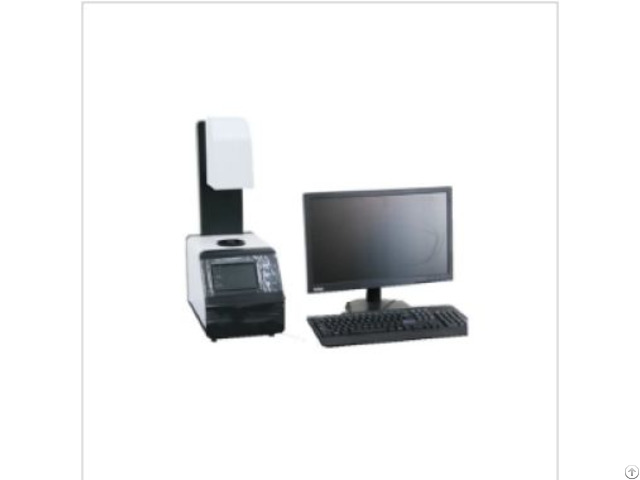

Haze Chamber - China

Standard The Haze Meter STDYH40 adheres to global standards including ASTM D1003/1044, ISO 13468/14782, JIS K7105, and GB/T 2410, ensuring compliance with rigorous quality control protocols.

Designed for transmittance (0–100%) and haze (ASTM/ISO) measurements, it meets the demands of industries such as glass processing, automotive coatings, pharmaceutical packaging, and display manufacturing.

Certified for CIE D65, A, and C illuminants, it guarantees consistent results across lighting condit

Product Features

Optical System: 0/D geometry with 90mm integrating sphere for diffuse light capture.

Sensor: PD array detector with CIE V(λ) 2° visual response for human-eye-matched results.

Measurement Range: 0–100% transmittance with 0.01% resolution.

Haze Metrics: ASTM D1003/ISO 13468-compliant haze calculation for transparent/semi-transpar ent materials.

Sample Handling: Accepts samples up to 40mm thick (e.g., laminated glass, injection-molded plastics).

Connectivity: USB and Bluetooth for real-time data transfer to PCs/tablets.

Power: 5000mAh lithium battery with 8-hour runtime (5000+ scans).

Durability: LED light source rated for 3M+ measurements (5+ years).

Display: Pass/Fail indicator for instant QC verification.

Environmental Resistance: Operates in 0–40°C (32–104°F) conditions.

Technical Parameters

Specification Details

Model STDYH40

Geometry 0/D (parallel illumination, diffuse reception)

Apertures Φ20mm, Φ15mm, Φ8mm, Φ4mm (interchangeable)

Wavelength Range 400–700nm (full-spectrum LED)

Transmittance Range 0–100% (0.01% resolution)

Haze Standards ASTM D1003, ISO 13468

Observers CIE 2°

Illuminants D65, A, C

Measurement Time 1.5s (single scan)

Repeatability ≤0.02 (Φ20mm, 30 measurements)

Inter-Instrument ≤0.4 (Φ20mm, BCRA calibration tiles)

Dimensions 100 × 129 × 238mm

Weight 1.3kg

Battery 5000mAh Li-ion (8 hours)

Data Storage 1000 standards, 20, 000 samples

Interface USB 2.0, Bluetooth 4.0

Languages English, Simplified/Traditional Chinese

Operating Temp.

0–40°C (32–104°F)

Storage Temp.

-20–50°C (-4–122°F)

Accessories Haze Meter STDYH40 Unit

Power Adapter & USB Cable

4x Interchangeable Apertures (Φ20/15/8/4mm)

HQC Quality Control Software (Downloadable)

User Manual & Calibration Certificate Micro-Printer, Test Fixtures, Certified Haze Standards
