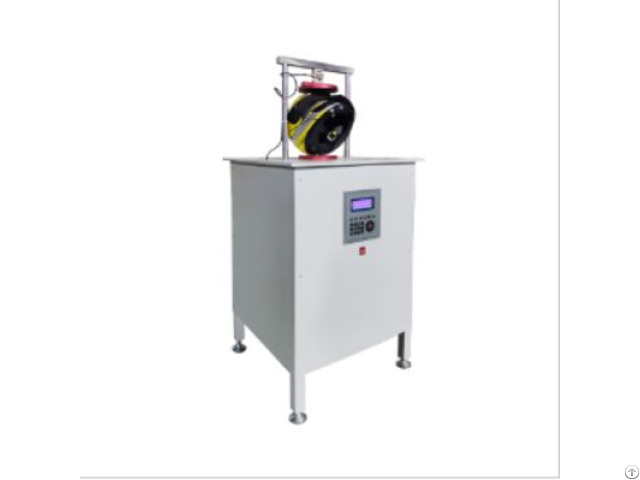

Helmet Lateral Stiffness Testing Apparatus - China

Standard

GB 2812: Safety Helmets (China National Standard) Equivalent Compliance: ISO 6220-2 (Industrial Safety Helmets – Lateral Deformation) CE Certification (Conformité Européenne) Product Advantages

GB 2812 Compliance 1.000N Load Capacity: Simulates extreme lateral impact forces per GB 2812 - 0.1mm Displacement Resolution: Captures subtle deformations before critical failure.

Ultra-Precise Control 1% Force Accuracy: Ensures repeatable compression testing for global certifications.

100N/min Adjustable Rate: Mimics real-world impact velocities.

User-Centric Design 7” Touchscreen HMI: Preloaded GB 2812 test sequences with auto-hold functions.

Quick-Release Helmet Clamp: Swaps samples in seconds for high-throughput labs.

Data Integrity

Built-In Data Logger: Exports force-displacement curves as PDF/CSV for audit trails.

LED Real-Time Display: Visualizes test progress and peak forces during loading.

Durability Aircraft-Grade Aluminum Frame: Resists deformation under 1.000N max load.

Corrosion-Resistant Sensors: Stainless steel construction for humid environments.

Technical Parameters

Parameter Specification

Force Capacity 0–1.000N (100 kgf capacity)

Force Accuracy ±1% of reading

Displacement Resolution 0.1mm (ISO 17025 traceable)

Test Rate 100N/min ±10N/min (configurable)

Max Travel Distance 600mm (23.6”)

Power Supply 220V AC, 50/60Hz (single-phase)

Dimensions 700mm (W) × 500mm (D) × 1.300mm (H)

Weight 95 kg (net)
