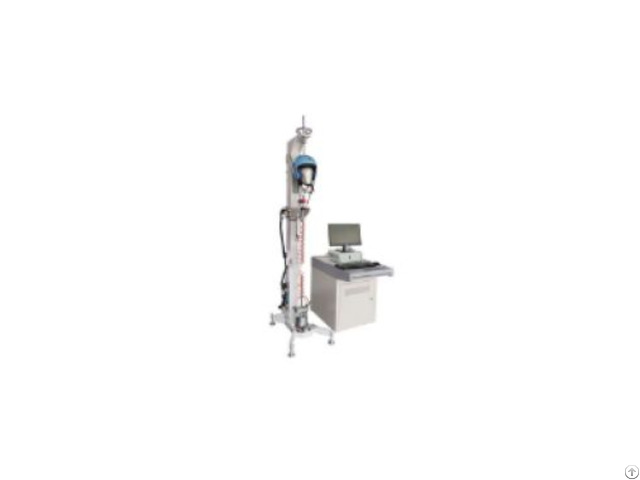

Helmet Strap Tensile Tester - China

Purpose

Apply a certain initial load to the helmet strap system for a certain period of time.

Then, let a weight of a certain mass fall from a certain height so that the impact force is also applied to the strap system, thereby evaluating the tensile performance of the strap system.

Applicable Standard

GB24429 Main technical specifications Pneumatic lifting device ( can be software controlled, can be manually controlled) Initial weight: 5.0kg ±0.5kg Impact weight: 4.0kg ±0.2kg Impact height: 600mm ±5mm High-precision displacement sensor grabs the data.

HT-6018-A special upper computer software to control the rise, fall and data algorithm.

The report can be saved as Word, Excel, PDF, JPG and other formats.

Connected to a printer, the report can be printed.

The software supports data storage, historical information query, data export, printing, etc.

Software with Chinese and English, can be switched.

With a dedicated computer
