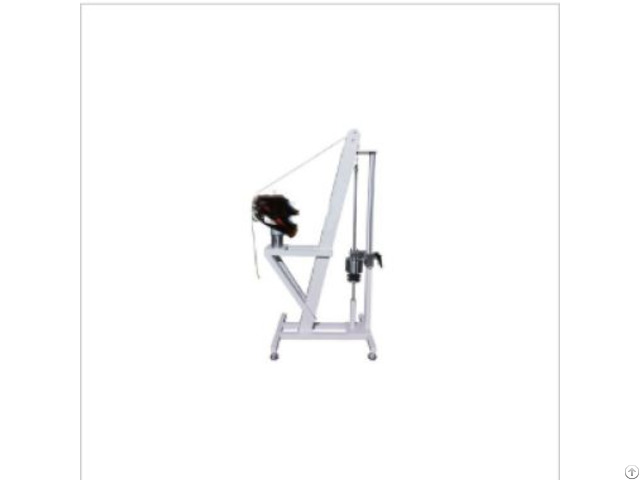

Safety Helmet Roll Off Testing Equipment - China

Purpose

Apply an initial load of a certain force to the rear of the helmet.

Then, let a weight specified by the standard fall from a certain height so that the impact force is also applied to the helmet.

In this way, the wearing stability performance of the helmet can be evaluated.

Test standard:

IS 4151, ECE R22.05 Mass of initial load: 3 kg ± 0.1 kg Mass of falling weight: 10 kg ± 0.01 kg Lowering height: 0.5 meters ± 0.01 meters Measuring method: manual Electricity: 220V 50HZ Test theory: vertical descent Test steps:

1 - previously to the ambient temperature and sanitary conditions for the conditions of the helmet, should be placed on the appropriate head shape and fixed in the appropriate head.

2 - In the median vertical plane of the helmet, a device that guides and releases the fall with a total mass of 3 kg ± 0.1 kg is attached to the rear of the shell.

3 - 10 kg ± 0.01 kg of falling mass is released and lowered from a height of 0.5 m ± 0.01 m.

The guiding device should ensure that the impact velocity is not less than 95% of the theoretical velocity.
