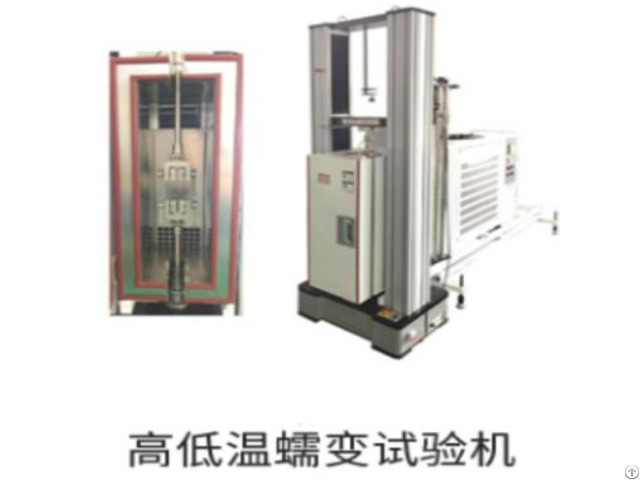

High And Low Temperature Universal Creep Testing Machine - China

Product Introduction:

High and low temperature universal creep testing machine is mainly used for non-metallic materials creep, stress relaxation, tensile, compression, bending, shearing, stripping, tearing and other tests.

Applicable standards:

GB/T 11546.1-2008 Determination of the creep properties of plastics - Part 1: tensile creep GB/T 15048-94 Test method for compressive creep of rigid foam plastics GB/T 20672-2006 Determination of compressive creep of rigid foam under specified load and temperature conditions GB/T 104.1-2006 - Determination of tensile properties of plastics - Part 1 GB/T 1041-92 Test method for compression properties of plastics GB/T 9341-00 Test method for bending properties of plastics Main indicators:

1 - Test force: Maximum test force (kN) : 10 Effective force measurement range: 0.4%-100%FS(internal and external ungraded) Resolution: 1/300000 Relative error: ±0.5% 2 - Test speed: Speed adjustment range: 0.05 —— 500mm/min(stepless speed regulation) Speed relative error: ±0.5% Control range of uniform test force rate and uniform deformation rate: 0.01% —— 5%FS/S Uniform test force rate, uniform deformation rate control error: ±0.5% Constant test force, constant deformation control range: 0.5% —— 100%FS Constant test force, constant deformation control error: less than 10%FS is ±1% of the set value, greater than 10%FS is ±0.1% of the set value 3 - Displacement (moving the beam) Measuring range: 0 —— 999mm Resolution: 0.001mm Relative error: ±0.5% Step 4 Transform Beam deformation measurement accuracy: ±0.5% Deformation measurement range in beam test: 860mm Large deformation measurement accuracy: ±0.5% Large shape measurement range: 25-1000mm 5 - Host and accessories Maximum test force kN 10KN Effective test width mm: 420 Maximum travel of moving beam mm: 1160 Overall dimensions (length × width × height)mm: 900×480×1810 Maximum clamping force of wedge chuck (kN) : 10 Clamping range: plate mm: 0-8 - rod mmφ : 6-φ16 - compression device mm: φ70 - bending device: support roll radius MMR2.5-R5.0 Roller diameter mm: φ5 Offset range mm: 120
