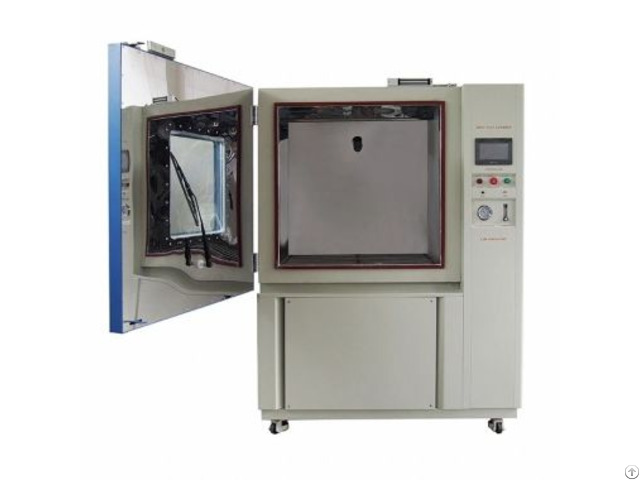

Humidity Environmental Test Chamber - China

Features and Benefits

1 - Wide Humidity & Temperature Range Offers precise control over humidity from 20% to 98% RH and temperature from -70°C to +150°C, simulating real-world environmental extremes with accuracy.

2 - Stable and Uniform Control Utilizes advanced PID controllers and balanced temperature-humidity control (BTHC) systems to ensure consistent environmental conditions across the test space.

3 - Anti-Corrosion & Durable Design Interior is made of SUS304 stainless steel with mirror finish, highly resistant to corrosion and suitable for long-term, high-humidity operation.

4 - Customizable Configurations Chambers can be tailored in size, door style, port locations, or humidity response speed to meet non-standard test specifications.

5 - Compliance with International Standards Fully compliant with IEC, MIL, ASTM, and ISO humidity test standards, ensuring global acceptance of test results.

Specifications

Model STD TH-100 STD TH-225 STD TH-500 STD TH-1000 Internal Dimension (mm) 400*500*500 500*600*750 700*800*900 1000*1000*1000 Overall Dimension (mm) 900*1050*1620 1000*1140*1870 1200*1340*2020 1500*1540*2140 Interior Volume 100L 225L 500L 1000L Heat load 1000W Temperature Range A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ Temperature Fluctuation ± 0.5 ℃ Temperature Deviation ± 2.0 ℃ Humidity Range 20% ~ 98% RH Humidity Deviation ± 2.5% RH Cooling Rate 1 ℃ / min Heating Rate 3 ℃ / min Controller Programmable color LCD touch screen controller, PC Link, LAN interface for remote control Cooling system Mechanical compression refrigeration system Refrigerant Environmentally friendly refrigerant Water supply system Automatic water supply; Water purification system Safety device Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; Interior Material SUS304 stainless steel Exterior Material Steel Plate with protective coating

Company Contact:

• Posted By: Standard International Group (HK) Limited

• Phone: 18355172336

• Address: No.2578 Gu Dai road, Min Hang district, Shanghai, shanghai , Shanghaai , China

• Email:

• Website: https://www.standard-groups.com/en/

• Business Description: Standard Groups is an integrated supplier specialized in providing material test instruments and “The Whole Laboratory Program” solutions.

  The main products cover many areas: Textile and Apparel, Leather and Footwear, Flammability Testing, Filter Material Testing, Automotive Interior, Toy Testing, Non-woven and Geo-membrane, Carpet Testing, Luggage/Furniture/Office Furniture Testing, Material and Parts of Automotive, Weathering and Light Stability Testing, Ovens and Environmental Testing Chambers, Salt Fog Chambers, Materials Testing Machines, 3D Body Scanning and Manikin, Air Quality Monitoring and Measurement, Package Material Testing, Electrical Safety Testing, Optical and Spectroscopy Instruments, Lighting and Color Assessment, Microscopy and Legal Inspection, and relative testing services.
