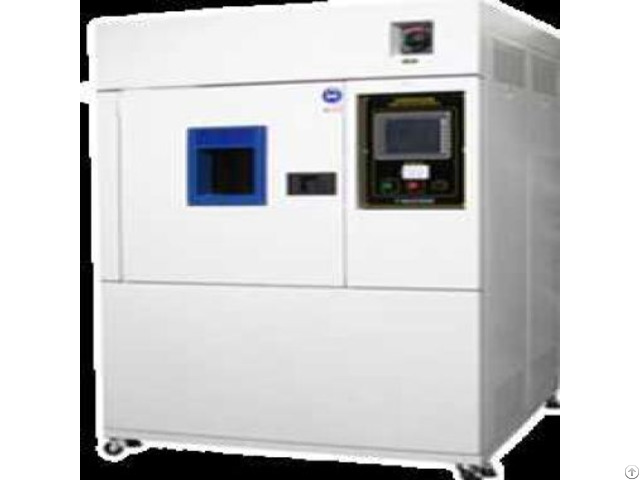

Xenon Arc Weatherometer Tester - China

Introduction

The xenon arc lamp, which is capable of simulating the whole natural sunlight spectrum in the most consistent manner, can reproduce the destructive light waves in different environments, so that the material can be subjected to light fastness and weather ability acceleration test.

The Xenon Arc Long-Life Weather Meter is designed to test a wide range of materials in the fields, such as: paint ink paint, resin, plastic, printing and packaging, adhesives, automotive/locomotive industry, cosmetics, metal, electronics, electroplating, medicine and so on.

Feature

1 - Water-cooled xenon arc lamp longevity guarantee long life arc 2000hr more.

2 - Optical quartz glass xenon arc lamp.

3 - The inner and outer filter tube metal coating process (long-life filter tube type).

4 - Irradiation intensity monitor the entire process.

5 - Ultrasonic and spray humidification system.

6 - Rain water temperature control 10-20°C.

7 - TFT, LCD color screen.

8 - Voltage, current, light intensity, temperature, humidity, rainfall pressure monitor the entire process.

9 - The replacement of the filter tube can type, including QUARTZ, SODA LIME, BORO, and GLASS.

10 - B.P.T.

And B.S.T.

selectable control.

11 - The effective irradiation area: 6500cm2 - 12 - Barrel tilting specimen holder 2 layers.

Standard

PV3929 1303, SAE J 1960, ASTM G151, ISO 105, MES, NES, VW, JIS and so on.

Specification MODEL

ITEM STD-9707A (F) STD-9707B (F)

INSIDE DIMENSION 1100x1100x1000 (WxDxH) mm 800x800x900 (WxDxH) mm

OUTSIDE DIMENSION 1400x1400x2000 (WxDxH) mm 1350x1300x1850 (WxDxH) mm

COOLING MODEL WATER COOLING WATER COOLING

LIGHT SOURCE 6500W XENON ARC 4500W XENON ARC

LAMP LIFE ≥2000Hr ≥2000Hr

FILTER GLASS Borosilicate / Quartz / Soda Lime Borosilicate / Quartz / Soda Lime

DIGITAL B.S.T.

89oC 95oC

DIGITAL B.P.T.

63oC / 83oC 63oC / 83oC

TEMP RANGE RT+10oC ~70oC RT+10oC ~95oC

HUMIDITY RANGE 20%RH~98%RH 20%RH~98%RH

SPECIMEN DRUM DIA 960mm 630mm

DURM ROTATION SPEED 1RPM or 1~3RPM (Adjustable) 3RPM

SPECIMEN 114 pcs in 2 stages 48 pcs in 2 stages

POWER SOURCE 220V / 380V, 1Ф3W 13KVA 220V / 380V, 1Ф3W 8KVA

NOTE：9707A(F), 9707B(F) is the Xenon Arc Weather Mete
