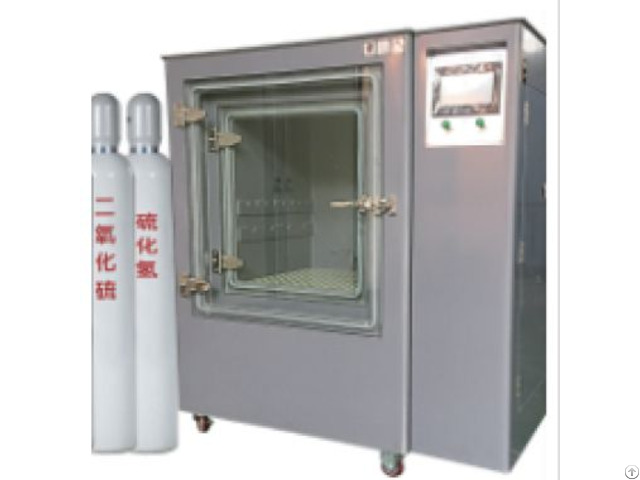

Hydrogen Sulfide Corrosion Test Chamber - China

Referenced Standards:

Complies with national standard GB/T 978.9-88 "Corrosion Test of Metal and Non-Metal Coatings Under Condensing Sulfur Dioxide", international standard ISO 6988 - QB/T 3831 "Color Change Resistance Test for Metal Plating and Chemical Treatment Layers", GB 2423.20-81 "Hydrogen Sulfide Test for Electrical Products", and other relevant global corrosion standards.

Model Specifications:

Device Name: Hydrogen Sulfide Corrosion Test Chamber, Gas Corrosion Test Chamber Model Series: H2S-150 - H2S-250 - H2S-750 - H2S-010 Key Performance Indicators:

1 - Temperature control: ±0.5℃/±2℃ stability 2 - Gas generation: Bottled gas supply system 3 - Concentration regulation: 0.1~1% (v/v) precision control 4 - Humidity control: 93%~98% RH with ±2% deviation 5 - Heating system: Titanium alloy nickel-chromium heater with PID+SRR synchronization 6 - Safety protection: Leak detection, short-circuit protection, over-temperature protection 7 - Control system: Imported PID microcomputer controller with 0.1℃ resolution 8 - Sample holders: 6 V-shaped corrosion-resistant racks + 12 O-shaped test rods Environmental Requirements:

Ambient temperature: 25℃~35℃ Ambient humidity: ≤75% RH Power supply: AC 220V/50Hz Technical Parameters:

Model Inner Chamber Size (W×D×H) Outer Dimensions (L×W×H) Power Consumption (kW) Temperature Range Humidity Range Gas Concentration

H2S-150 450×600×450mm 680×1000×1050mm 1.1 25℃~40℃ 93%~98% RH 25±5ppm

H2S-250 600×900×500mm 850×1420×1120mm 1.2 25℃~40℃ 93%~98% RH 25±5ppm

H2S-750 750×1100×500mm 1000×1650×1320mm 2.1 25℃~40℃ 93%~98% RH 25±5ppm

H2S-010 850×1300×550mm 1150×1900×1370mm 2.2 25℃~40℃ 93%~98% RH 25±5ppm

Additional Notes:

1 - All specifications measured under standard ambient conditions (25℃, no load) 2 - Customized non-standard models available upon request
