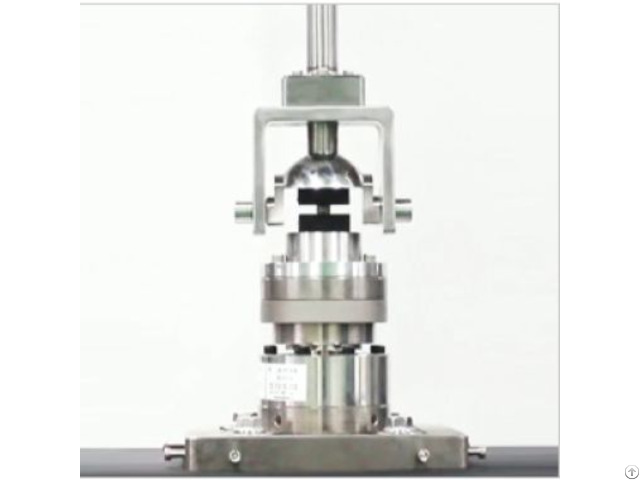

Intervertebral Fusion Cages Torsion Fatigue Tester - China

Standard

YY/T 0959-2014 (China): Specifies torsional fatigue testing protocols for intervertebral fusion devices, including load ratios, frequency, and failure criteria.

ASTM F2077-17 (International): Defines methodologies for evaluating the fatigue strength of intervertebral body fusion devices under torsional loading.

ISO 12189-1: Additional compliance for mechanical testing of spinal implant components.

Product Advantages

Bidirectional Torsion Control: Advanced electromagnetic actuator maintains R=-1 load ratio (fully reversed torsion) with ±0.1% accuracy.

5 Million Cycle Endurance: Proven capability to complete YY/T 0959’s 5×10⁶-cycle fatigue test without calibration drift.

Dynamic Angle Control: 0.001° resolution ensures precise replication of physiological spinal motion.

Real-Time Fracture Detection: AI-powered acoustic emission monitoring identifies micro-cracks at sub-millisecond intervals.

Intuitive Workflow: 21.5” capacitive touchscreen with gesture control and pre-loaded SOPs for 8+ implant geometries.

Modular Environmental Chambers: Quick-swap pods for simulated physiological (-20°C to +50°C) and corrosive environment testing.

Product Features

Electromagnetic Servo Motor: 50 Nm peak torque capacity with programmable load ratios (R=-1 to R=0.1).

Torsional Actuator: ±180° rotation range with 0.001° angular resolution.

Dynamic Load Control: 0.1–5 Hz frequency range with programmable waveforms (sine, square, random, custom).

Thermal-Mechanical Chamber: ±0.3°C temperature stability with integrated humidity control (10–95% RH).

High-Speed Imaging Ready: Syncs with external cameras for full-field strain mapping (DIC optional upgrade).

Safety First: Triple-redundant emergency stop, overload clutches, and laser-based specimen breakage detection.

Technical Parameters

Parameter Specification

Max.

Torsional Moment ±50 Nm (10 Nm resolution)

Angular Range ±180° (0.001° resolution)

Frequency Range 0.1–5 Hz (0.01 Hz increments)

Load Ratio (R) -1 to 0.1 (adjustable)

Temperature Control -20°C to +50°C (PT1000 sensors)

Humidity Control 10–95% RH (non-condensing)

Data Sampling Rate 100 kHz (synchronized across 16 channels)

Power Requirements 220V/110V ±10%, 50/60Hz, 2.000W

Dimensions (W×D×H) 1.500 × 1.000 × 2.000 mm

Weight 750 kg (including environmental chamber)

Noise Level <65 dB (A-weighted)

Accessories

Spinal Implant Fixture Kit: Self-centering collet system (8–20 mm implant diameter compatibility) Laser-aligned loading anvils with diamond-like carbon (DLC) coating Thermal-Mechanical Chamber: 15L capacity with rapid cooling/heating (15°C/min) 316L stainless steel interior with HEPA filtration TorsionMaster Pro Software: Automated S-N curve generation and fatigue limit calculation 21 CFR Part 11-compliant audit trail with blockchain timestamping Remote monitoring via dedicated iOS/Android app Operator Kit: Calibrated torque wrench set (0.5–50 Nm) Specimen alignment gauges (ASTM F2077 compliant) Calibration Bundle: NIST-traceable torque calibration weights Angular encoder verification tool Safety Kit: Laser safety curtains Acoustic enclosure with 30 dB noise reduction
