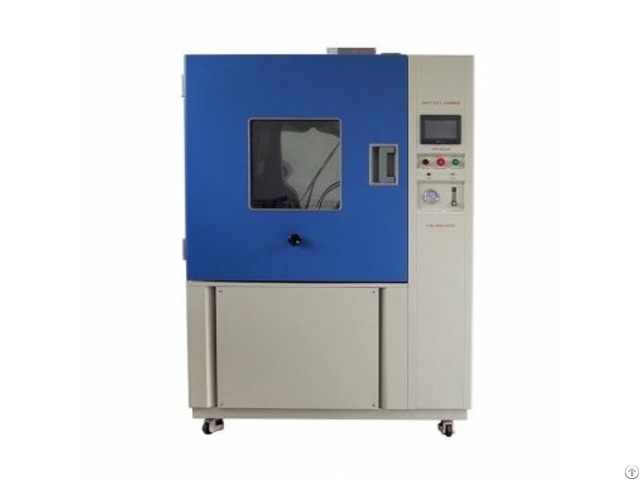

Ip6x Test Equipment - China

Features and Benefits

1 - The workroom adopts double-layer sealing rubber, and is equipped with electromagnetic lock to prevent the operator from misoperation, to ensure no dust leakage during the test process, and to ensure the safety of operators and clean test site.

2 - 50μm talc powder is used to simulate sand dust, and the dust concentration is 2kg ~ 4kg/m³.

The workroom circulates air, and the dust forms a vertical 0-shaped circulation system to simulate an uninterrupted dust environment.

3 - The door of STD ip6x test equipment is equipped with a transparent observation window with a wiper to facilitate the observation of product status during the test process, and custom gloves can also be made on the door to facilitate direct contact and adjustment of the product.

Specifications

Model STD DI-800 STD DI-1000 STD DI-1500 STD DI-2000 Internal Dimension (mm) 800*1000*1000 1000*1000*1000 1000*1500*1000 1000*2000*1000 Overall Dimension (mm) 1040*1450*1960 1330*1450*1960 1330*1950*1990 1330*2450*1990 Useful Volume (L) 800 1000 1500 2000 Temperature Range Ambient ~ +50℃ Humidity Range < 30% RH Normal Wire Diameter 50um Nominal Width of a Gap Between wires 75um Fight Time 0 ~ 99H59M Blowing Time 0 ~ 99H59M Specimen Power Outlet Dust-proof socket 16A Controller Programmable color LCD touch screen controller, Ethernet connection Safety Device Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection Exterior Material A3 Steel Plate with protective coating Interior Material SUS304 stainless steel Standard Configuration Sample shelf, dust wiper, talcum powder(5kgs) Power AC380V 50Hz
