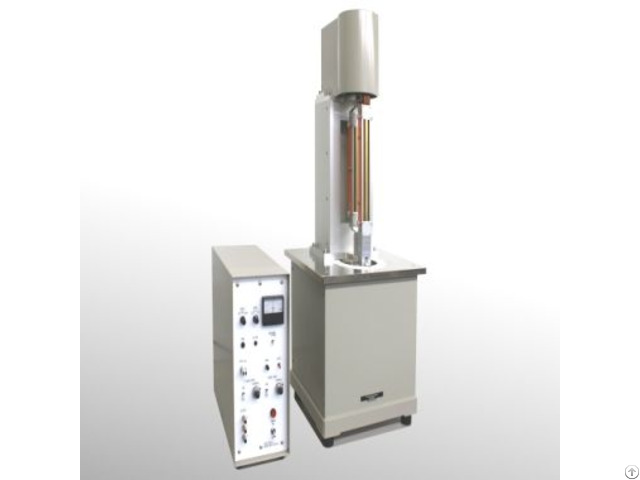

Large Scale Bending Tester Std Fb2 L - China

The Large Bending Tester accurately and quickly measures factors related to curvatures in small bending moments (bending hardness and recoverability).

Adding to the small area available with conventional models, the STD-FB2-L enables measurements that were not previously possible, such as large bending moments and bending rigidity of thick sheet material and composites (products) made from multiple materials.

The device also offers excellent data reproducibility in addition to easy measurement.

The tester has been put to use in a variety of industries, including the automotive industry.

Standard

GB/T 2679.3 - GB/T 23144 - ISO 5628 - ISO 2493 - ASTM D 5342 Features

Measure hardness and recoverability when bending paper, non-woven fabric, and cloth through pure bending tests.

Measure treatment differences (such as flexible processing surface treatment).

Hardness and recovery capabilities when bending can be read instantly, allowing for simple data analysis.

Measured values are obtained using a power meter with sensitivity matching that of a fingertip, so results are consistent with sensory evaluations.

Specification

Product Name Large bending Tester

Dimensions (W × D × H) *approx.

Measuring unit: 430 × 370 × 990 mm

Amplifier: 180 × 400 × 400 mm

Weight *approx.

Measuring unit: 80 kg

Amplifier: 10 kg

Power supply, Frequency 100VAC, 50/60Hz

Interface STD-USB (optional)

PC (optional) *1

Data logger output terminal

OS Windows 7/8/8.1/10

Sample size 200 × 200 mm (standard)

Thickness: 15 mm (max.

)
