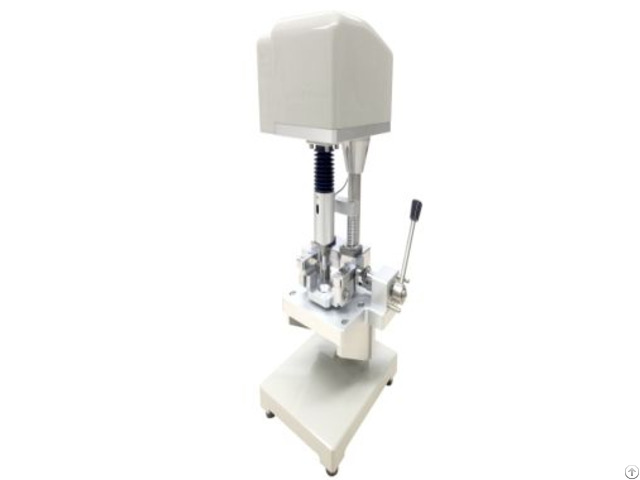

Puncture Strength Tester Std Ndg5 - China

Compliance Standards

ASTM D638 (Plastics Tensile Properties) ISO 13934-1 (Textile Tensile Strength) SAE J2749 (Automotive Composite Testing) JIS L1096 (Fabric Shear Resistance) IEC 62133-2 (Battery Cell Shear Testing) Technical Parameters

Parameter Specification

Force Range 0.01N - 500N (±0.5%)

Displacement Resolution 0.1μm

Test Speed 0.01 - 1000 mm/min

Shear Strain Range ±8° (±0.1° accuracy)

Grip Types Mechanical, Pneumatic, Cryogenic

Data Rate 1000 Hz sampling

Key Features

Biaxial load cell (tension + shear) Real-time stress-strain curve display Non-contact laser extensometer Automated grip pressure control ISO 17025-compliant calibration Test Capabilities

Test Type Standard Parameters

Ultimate Tensile Strength ASTM D638 50 mm/min

Shear Modulus ISO 14129 ±5° shear angle

Cyclic Fatigue SAE J2749 10⁶ cycles @ 5Hz

Measurement System

24-bit digital load cell 0.1μm laser displacement sensor Thermal compensation (-10°C to 50°C) Real-time Poisson's ratio calculation Standard Configuration

Dual-column frame (500mm test space) Interchangeable grips (wedge, roller, shear) TestXpert II analysis software 500N load cell (Class 0.5) Automotive Options

Battery cell shear strength fixture -40°C to 150°C thermal chamber Seatbelt webbing test package CAN bus data integration Safety Systems

Emergency stop with position lock Overload protection (110% F.S.) Automatic grip release on failure Safety interlock on chamber door Implementation Notes

Calibrate monthly per ISO 376 Sample alignment critical for ±1% accuracy Ambient vibration must be <4μm RMS Use Class M1 reference weights
