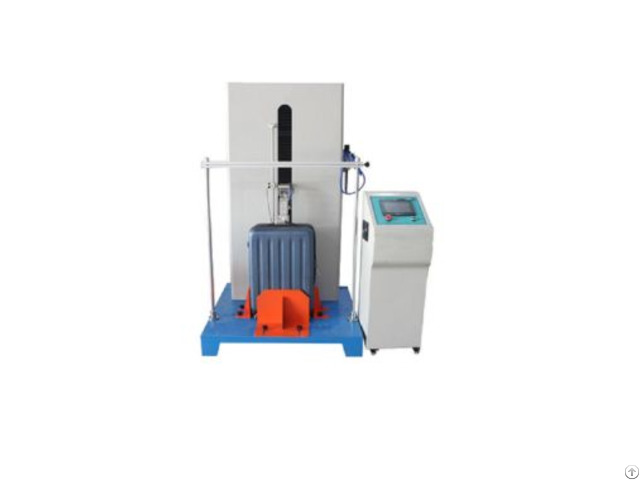

Luggage Rod Reciprocating Fatigue Testing Machine - China

Product Introduction:

Luggage rod reciprocating testing machine for luggage rod reciprocating fatigue test.

In the test, the specimen will be stretched to test the gap generated by the tie rod, loosening, connecting rod failure, deformation, etc.

Design criteria:

QB/T 2919-2010 Theory：

luggage trolley handle reciprocating fatigue testing machine -- Under certain pulling and pressing frequency, To check the reciprocating fatigue performance of the pull rod, rod structure of fastness and durability of the switch through the luggage lever lock with a pull rod is continuously pulling switch, reciprocating and pressing.

Usage：

Leather suitcase trolley reciprocating fatigue testing machine is used to test fatigue of the reciprocating rod for the luggage.

During the test, the rod would be stretched and then test whether there will be backlash, loose, connecting problems and transformation of the rod.

Technical parameters:

Test travel 20——100cm, adjustable Maximum drawing speed 0——10 cm/sec, adjustable Maximum compression speed 0——10 cm/sec, adjustable Test times 0——999999 times automatic stop Test the power cylinder Sensing position Four-point sensing position The maximum height of the specimen is 100cm Auxiliary equipment case fixing clamp Use pressure 5——8kg/cm2 Machine size 80X90X180cm (WXDXH) The weight is about 120kg Use power supply AC220V, 50/60Hz, 5A Include 1-6 specified parts:

1、Sample clamp holder: adjust the test size 2、pull rod holder 3、Rod movement device: do reciprocating motion, and the speed and travel can be adjustable 4、support frame：the height is not less than 1500 mm, Install pulling, pressing travel guide 5、pull rod lock switch gear 6、counter：count the movement times
