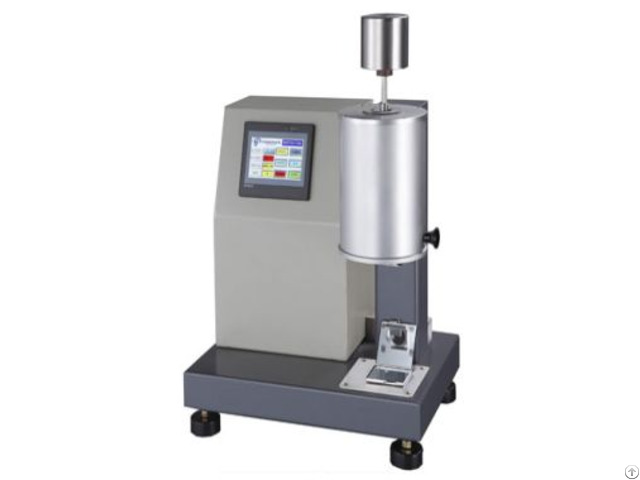

Melt Index Tester - China

Standards：

ISO 1133 - ASTM D1238 - GB/T 3682 - JIS K7210 Main uses:

The melt flow rate meter uses automatic sampling and balance weighing to determine the volume flow rate (MFR) of thermoplastic melts according to the formula.

Application range:

It is suitable for engineering plastics such as fluoroplastics and nylon, and also for the determination of plastics with low melting temperatures such as polyethylene (PE), polypropylene (PP), polyoxymethylene (POM), polystyrene (PS), ABS resin, and polycarbonate.

It is widely used in plastic production, plastic products, petrochemical and other industries and related colleges and universities, scientific research institutions, and commodity inspection departments.

Product Advantages:

Accurate Material Characterization: Provides reliable data on the flow properties of thermoplastics, essential for quality control and research.

Standard Compliance: Enables testing according to globally recognized standards, ensuring results are comparable and accepted internationally.

Improved Processability Prediction: Helps predict how a polymer will behave during processing, aiding in optimizing manufacturing parameters.

Early Detection of Degradation: Sensitive to changes in molecular weight, allowing for monitoring of material degradation.

Versatile for Various Polymers: Applicable to a wide range of thermoplastic materials.

Enhanced Efficiency: Automated features (cutting, data processing) improve testing throughput.

Main features:

1 - Fast heating speed and extremely small overshoot 2 - High constant temperature accuracy 3 - After filling, it can quickly restore the constant temperature state 4 - Convenient calibration and correction of test parameters 5 - Manual and automatic cutting test methods can be used 6 - Chinese LCD display 7 - Equipped with a printer to automatically print out the test results 8 - Accurate measurement data, simple operation, intuitive and clear, stable and reliable performance Specification：

Tempreture control 50 ~450°C, PID control, Accuracy±0.1°C(includin g the overtempreture protection) Weights 1200g, 2160g, 3800g, 5000g, 10000g Automatic cropping device Automatic cropping and manual operation(optional) Time setting 0.1~999.9min Arbitrarily setting Cylinder Diameter9.5504±0.0076mm Plunger: Diameter9.4742±0.0076mm Thin hole pattern External diameter: 9.5±0.02mm, bore diameter2.0955±0.0051mm, lenth8.00±0.02mm Size (L×W×H)36×51×60cm Machine Weight: 40kg(not including the weights) Power supply AC220V, 5A Accessory Mercurial thermometer150°C, 200°C, 250°C, 300°C(optional), one

cleaning brush, one scraper, one guaid material stick, one observation

mirror, one feedstock funnel, three frictioning steel disc, two thin hole

pattern determine gauge.
