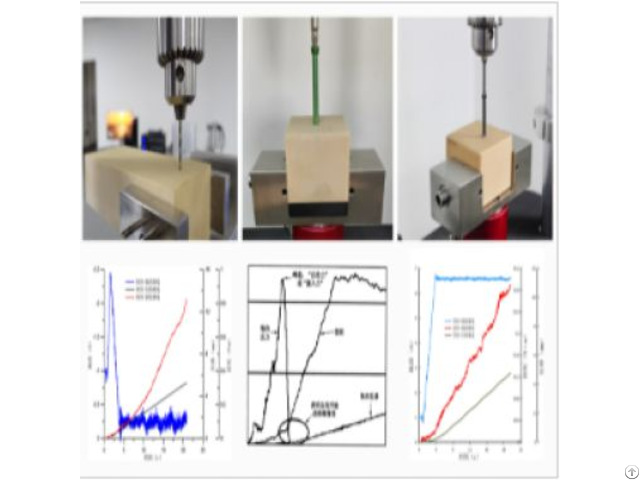

Metal Bone Screws Self Tapping Tester - China

Standard

ISO 6475: Implants for surgery – Wear of total hip-joint prostheses ASTM F543: Standard Specification and Test Methods for Metallic Medical Bone Screws YY/T 1505-2016: Chinese Standard for Orthopedic Implant Testing EN ISO 14708: Implants for surgery – Active implantable medical devices Product Advantages

Unmatched Precision: High-resolution torque and angle sensors (±0.5% FS accuracy) ensure repeatable results for critical self-tapping performance evaluation.

Versatile Testing Modes: Supports static/dynamic torque testing, insertion/removal cycle testing, and fatigue analysis to simulate real-world surgical scenarios.

User-Centric Design: Intuitive touchscreen interface with multi-language support and customizable test protocols.

Durability & Safety: Corrosion-resistant stainless-steel frame and enclosed testing chamber with emergency stop functionality.

Global Compliance: Pre-certified for CE (EU), FDA (US), and TGA (Australia) regulatory requirements, simplifying export procedures.

Product Features

Dual-Mode Drive System: Servo motor with 0.1° rotation resolution for precise screw insertion control.

Manual override mode for delicate sample positioning.

Advanced Data Acquisition: Real-time torque-angle curve display with automatic peak detection and statistical analysis (max/min/mean values).

Modular Fixture System: Quick-change chucks accommodate screw diameters from 1.5mm to 8.0mm (M1.5 to M8).

Adjustable bone substitute holders for ASTM F1839 synthetic bone blocks.

Environmental Simulation: Optional temperature-controlled chamber (-20°C to +150°C) for extreme condition testing.

Connectivity: USB/Ethernet ports for data export (CSV/Excel) and integration with laboratory information systems (LIMS).

Accessories

Test Kit: 3x Collet Chucks (M1.5 - M3.5 - M6.0) 5x ASTM F1839 Synthetic Bone Blocks (Density Grade 10/20/30) Software Suite: LabScrew Pro V3.0: Compliance-ready software with 21 CFR Part 11 audit trail support.

Calibration Tools: NIST-traceable torque calibration adapter (certified) Angle verification jig Safety Kit: Emergency stop pendant Safety interlock sensors Documentation: Multilingual user manual (4 languages) CE Declaration of Conformity 12-month warranty certificate Technical Parameters

Parameter Specification

Torque Range 0–10 N·m (0–88.5 lbf·in)

Angular Resolution 0.1°

Speed Control 1–300 RPM (adjustable)

Axial Load Capacity 0–500 N (0–112.4 lbf)

Power Supply 100–240V AC, 50/60Hz

Dimensions (W×D×H) 500 × 450 × 1.200 mm

Weight 85 kg (187 lbs)
