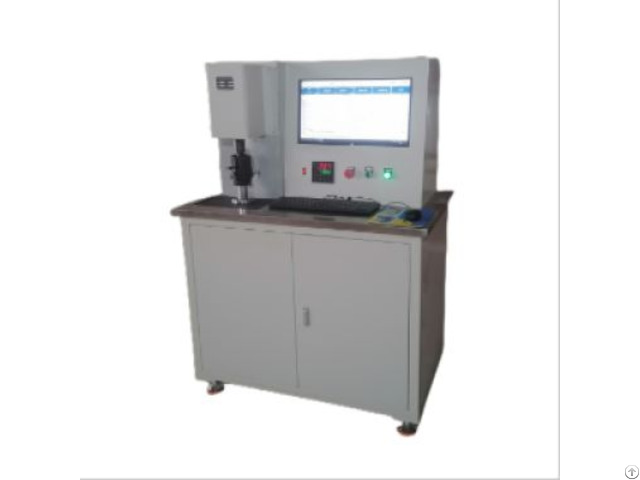

Micro Controll Four Ball Friction Tester - China

Applicable Standards：

When conducting tests, the microcomputer - controlled four - ball friction testing machine needs to comply with the following relevant national or international standards: GB/T 12583 - 98: Method for Determination of the Extreme - Pressure Properties of Lubricants (Four - ball Machine Method).

GB 3142 - 82: Method for Determination of the Load - Carrying Capacity of Lubricants (Four - ball Method).

SH/T 0189 - 92: Method for Determination of the Anti - wear Properties of Lubricating Oils (Four - ball Machine Method).

SH/T 0202 - 92: Method for Determination of the Extreme - Pressure Properties of Greases (Four - ball Machine Method).

SH/T 0204 - 92: Method for Determination of the Anti - wear Properties of Greases (Four - ball Machine Method).

These standards specify the requirements for the test methods, test conditions, data processing, etc.

of the four - ball friction testing machine to ensure the accuracy and comparability of test results.

Technical Parameters：

Test force range (infinitely adjustable)： 60N~10kN Relative error of test force： ±1% Test force long time holding error： ±1%F.

S Friction force test range： 0~300N Friction force test error： ±3% Spindle rotation speed range (infinitely adjustable)： 200~2000r/min Spindle rotation speed error： ±5 r/min Temperature control range of the friction side Room temperature~：150°C Temperature control error of the friction side： ±2○C Test time control range 1sec~999hours Test time control range 1~9999999999rpm Test steel ball φ12.7mm Overall dimension 100*870*1700 (Test ball Temperature control error ±2○C Test time control range： 1sec~999hours Spindle speed control range： 1~99999999 rpm Test steel ball： φ12.7mm Overall dimensions： 1200*870*1700 (mm) Weight：800kg
