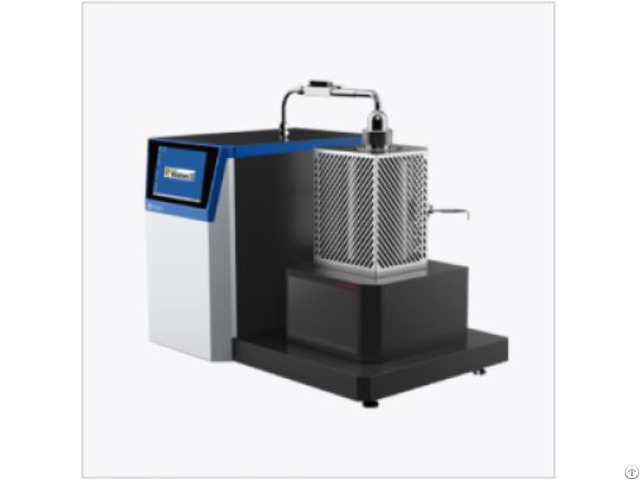

Minimum Ignition Temperature Mit Dust Cloud Tester - China

Reference Standards

ASTM E1491 - 06 EN 50281 - 2 - 1 GB/T 16429 IEC 61241 - 2 ISO/IEC 80079 - 20 - 2 Product Features

1 - It has built - in commonly used international test standards, allowing for testing according to standard parameters or custom - setting.

2 - It adopts a fuzzy PID temperature - control algorithm to achieve high - precision temperature control.

3 - It is equipped with a temperature sensor calibration interface for easy calibration and correction.

4 - It uses a Godbert - Greenwald furnace with a built - in quartz tube to ensure the reliable operation of the heating furnace body.

5 - The furnace cavity is made of heat - insulating vacuum ceramic fiber, which has a good heat - insulation effect.

6 - The temperature thermocouple is from an internationally well - known brand, ensuring the long - term stable operation of the instrument.

7 - It has the function of detecting ambient temperature and humidity and automatically records experimental environment information.

8 - Remote control ensures the personal safety of experimenters.

9 - User - level management enables the management and control of accounts at different levels.

10 - The USB interface is plug - and - play, facilitating data management.

11 - With professional industrial design, it is simple and elegant.

12 - It is equipped with a 7 - inch color liquid - crystal touch screen that dynamically displays the experimental progress.

Technical parameters

Operating environment (5 to 45)°C, <85% RH Temperature range Room temperature to 1000°C Rising time ≤20min (room temperature to 500°C) Temperature control stability ±5.0°C Temperature measurement accuracy ±3.0°C Temperature measurement precision ±0.1°C Powder spray pressure range (0 to 100)kPa Pressure accuracy ±5% Storage volume 500mL Ambient temperature measurement range (-10 to 60)°C Ambient humidity measurement range (5 to 95)% RH Interface USB*2 Power 220VAC/50Hz Power 2600W Dimensions 670mm х 400mm х 590mm
