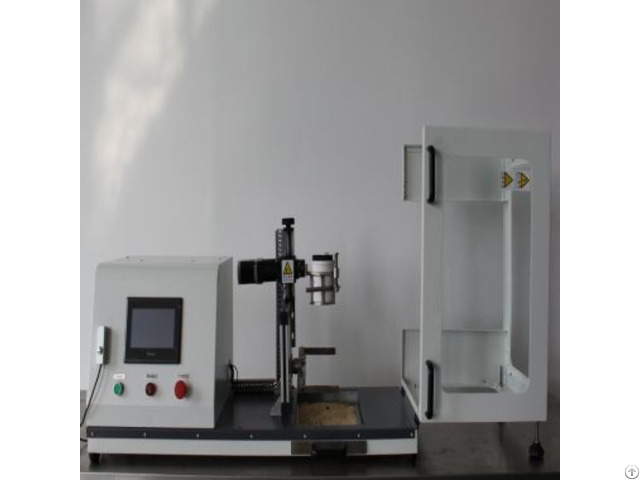

Molten Metal Penetration Resistance Tester - China

Standard

ISO 9185 (Protective Clothing - Assessment of Resistance to Molten Metal Splash)

ASTM F955 (Standard Test Method for Evaluating Heat Transfer Through Materials for Protective Clothing Upon Contact With Molten Substances)

EN ISO 11612 (Protective Clothing - Performance Requirements for Clothing to Protect Against Heat and Flame)

Product Advantages

Precision Molten Metal Delivery

Programmable crucible system delivers molten metal (iron, aluminum, zinc) with ±2°C temperature accuracy, simulating industrial splash scenarios.

Automated Safety Protocols

Integrated shielding, emergency coolant system, and laser-guided drop placement minimize operator risk during testing.

High-Speed Imaging

1, 000 FPS camera captures penetration dynamics in real time, providing visual evidence for compliance reporting.

User-Centric Operation

10.1-inch touchscreen with multilingual interface (English, German, Chinese, Korean) and AI-powered test result analysis.

Low Cost of Ownership

Energy-efficient design reduces power consumption by 25%, with recyclable crucible liners minimizing waste.

Product Features

Multi-Metal Testing:

Supports iron (1, 400–1, 600°C), aluminum (700–750°C), and zinc (420–450°C) for versatile hazard simulation.

Adjustable drop height (0.5–2.0m) and volume (1–50g) to replicate varying splash intensities.

Real-Time Monitoring:

Thermal imaging and pressure sensors track penetration events, with cloud-based data storage for ISO-compliant reporting.

Safety First:

Explosion-proof enclosure, interlock system, and automatic crucible ejection prevent operator exposure to hazards.

Modular Expandability:

Optional upgrades for high-speed video analysis, multi-angle impact testing, and third-party software integration.

Technical Parameters

Parameter Specification

Temperature Range Up to 1, 600°C (±2°C accuracy)

Metal Compatibility Iron, Aluminum, Zinc, Copper

Drop Height Range 0.5–2.0m (adjustable)

Drop Volume Control 1–50g (±0.1g accuracy)

Data Acquisition Rate 10, 000 Hz (thermal/pressure sensors)

Power Supply 380V/220V AC, 50/60Hz, 4.5kW

Dimensions (L×W×H) 1.5×1.2×2.0 m

Weight 300 kg

Operating Environment 5–40°C, ≤75% RH (non-condensing)

Accessories Included

Crucible Kit: Ceramic liners and pouring nozzles for iron, aluminum, and zinc testing.

Sample Holders: Adjustable clamps for clothing, gloves, and footwear (EN ISO 11612-compliant).

Safety Gear: Heat-resistant gloves, face shield, and emergency eyewash station.

Calibration Kit: Thermocouple set and certification for annual validation.

User Manual & Software: Digital guide (multilingual) + AI analytics platform for penetration trend analysis.

Ideal For: PPE manufacturers (protective clothing, gloves, footwear)

Industrial safety certification laboratories

Metalworking and foundry operations

Government regulatory agencies
