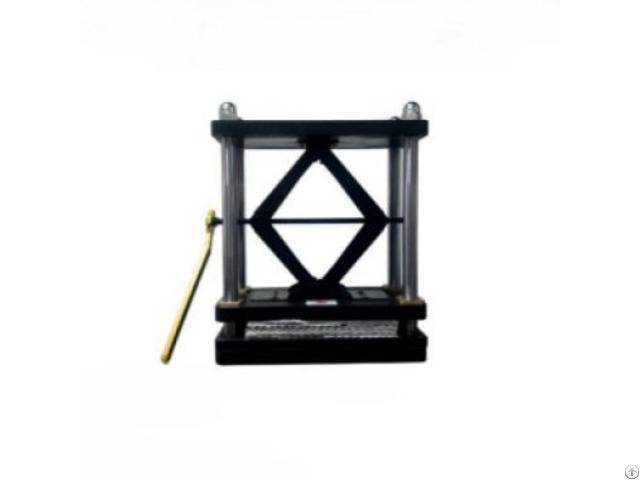

Multilayer Geotextile Single Layer Thickness Tester - China

Meet the standard

GB/T17598-1998 - GB/T 13761.1-2022 - JTG E50-2006 - IS09863-90 Scope of application

The multi-layer sample is mechanically separated and the thickness of each single layer of the sample is measured under the specified pressure Instrument features

Thickened upper and lower rectangular plate, can withstand large pressure without deformation; Straight sliding copper sleeve, smooth plate movement, to ensure the parallelism of the upper and lower plates; Hand-operated lifting mechanism, maximum force value 1.8T, stable force value, can be fixed on any stroke, Digital display measuring calipers for easy reading.

Standard configuration

1 - One host 2 - 1 vernier caliper 3 - 1 special wrench 4 - Product packing list 1 copy 5 - 1 copy of product manual 6 - Product tag certificate 1 copy Technical parameters

Rectangular plate thickness 30mm Travel 0——120mm Maximum pressure 300kPa Measuring range 0——200mm Index value 0.01mm Point wire φ0.05mm, length 20mm Isolation plate thickness 2mm Dimensions: 430*210*510mm It weighs about 80kg
