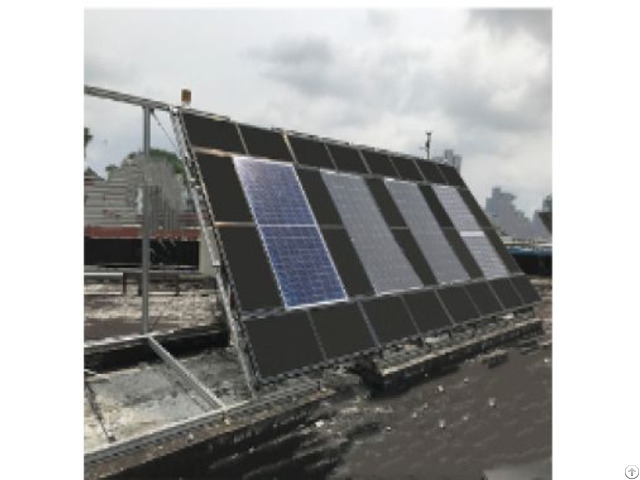

Outdoor Exposure Testing System For Photovoltaic Modules - China

Standard

IEC 61215: Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval IEC 61730: Photovoltaic (PV) Module Safety Qualification UL 61730: Safety Standard for Photovoltaic Modules ISO 9060: Solar Energy – Classification of Pyranometers CE Certification (Conformité Européenne) Product Advantages

Real-World Accelerated Aging 10–15 Year Equivalence: Achieves IEC 61215 damp heat/UV exposure in 6 months.

Spectral Matching: AM1.5G filter for standardized terrestrial solar simulation.

Multi-Environment Testing -40°C to +85°C Chamber: Replicates desert heat to polar cold with ±1°C stability.

95% RH Humidity Control: Tests PID resistance in tropical/marine environments.

Energy Harvesting Grid-Tied Design: Offsets 70% of power consumption via test module output.

MPPT Tracking: Optimizes energy extraction during standby periods.

Smart Data Acquisition 16-Channel Logging: I-V curves, EL imaging, and thermal mapping in real-time.

AI-Powered Diagnostics: Predicts degradation modes (delamination, hotspots) via ML.

Safety First Arc-Fault Detection: UL 1699B-compliant for DC side protection.

Emergency Shutoff: Dual redundant safety circuits with GPS-enabled alerts.

Product Features

Dual-Axis Tracker: ±60° tilt, ±180° azimuth for precise solar alignment.

10” Sunlight-Readable HMI: Preloaded IEC/UL test sequences with customizable dwell times.

Remote Monitoring: 4G/LTE connectivity with SMS/email alerts.

Self-Cleaning System: Automated rain simulation for dust accumulation studies.

Modular Design: Expandable from 5 kW to 50 kW for pilot-scale testing.

Accessories Included

Testing Kit: 4x IEC 60904-4 compliant reference cells.

10x Type T thermocouples with ceramic insulation.

Software Suite: License key for SolarTest Pro (Windows/Linux).

1-year free access to cloud-based PV simulation tools.

Technical Parameters

Parameter Specification

Solar Irradiance 300–1.200 W/m² (AM1.5G filtered)

Temperature Range -40°C to +85°C (operational)

Temperature Deviation ≤±1°C (at steady state)

Humidity Range 10%–95% RH (non-condensing)

Chamber Volume 2m × 3m × 2.5m (W×D×H, expandable)

Power Supply 380V/415V 3-phase, 50/60Hz

Dimensions 2.500mm (W) × 3.500mm (D) × 3.000mm (H)

Weight 1.200 kg (net) / 1.800 kg (gross)
