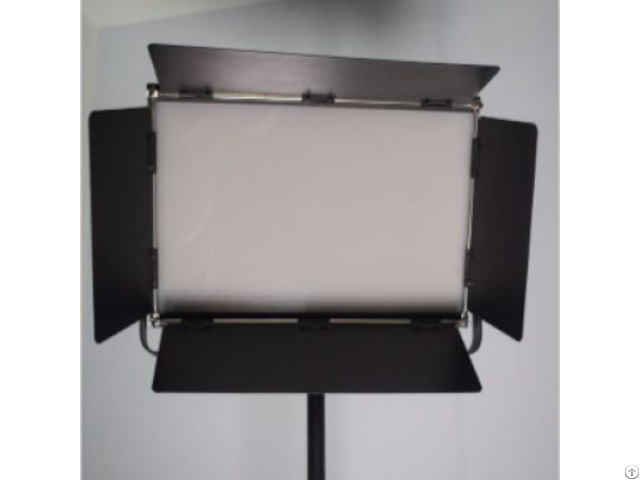

Photo Fill Light Box Meter - China

Standard

CE & FCC Certified: Meets electromagnetic compatibility and safety standards for EU/US markets.

RoHS Compliant: Lead-free construction for environmentally responsible photography.

IEC 60598-1: Luminaire safety requirements for commercial lighting equipment.

Product Advantages

1 - Customizable Illumination Modular LED Panels: Interchangeable 5.600K (daylight) to 3.200K (tungsten) bi-color modules.

CRI ≥95: True-to-life color rendering for product photography and videography.

2 - Versatile Studio Setup 2.2m Adjustable Stands: Collapsible aluminum frame with 1.5–2.2m height adjustment.

Dual Light Box Design: 1.187mm × 688mm (46.7” × 27.1”) illuminated surfaces for 360° coverage.

3 - Portable Performance 55kg Total Weight: Split design for easy transport in car trunks or vans.

3-Minute Assembly: Tool-free quick-release clamps for rapid setup.

4 - Energy Efficiency 800W Max Power: Equivalent to 4.000W traditional tungsten lighting.

0–100% Dimming: Flicker-free output for 4K/8K video recording.

5 - Industrial Durability Aluminum Alloy Frame: Resists warping up to 50kg payloads.

IP20-Rated Housing: Dust-resistant for studio or location shoots.

Product Features

Lighting System: Bi-Color LED Panels: 5.600K ±200K/3.200K ±200K adjustable via control box.

Barn Doors Included: Light shaping accessories for precise spill control.

Control Interface: 4-Channel Dimmer: 0–100% brightness control with memory presets.

DMX512 Compatibility: For integration with professional lighting consoles.

Safety Systems: Overheat protection at 60°C with auto-shutoff.

Residual current device (RCD) for operator safety.

Mounting Options: Baby Pin Adapters: Compatible with Bowens/Elinchrom modifiers.

360° Swivel Brackets: Rotate panels for overhead or side lighting.

Connectivity: 2 × 3m (10ft) power cables with locking connectors.

V-Mount battery plate for location shoots (optional).

Technical Parameters

Specification Details

Light Box Dimensions 1.302mm × 803mm × 100mm (W×D×H)

Illuminated Area 1.187mm × 688mm (46.7” × 27.1”)

Color Temperature 3.200K–5.600K (adjustable)

CRI (Ra) ≥95

Power Supply 220V/50Hz (110V optional)

Max.

Power Consumption 800W (400W per lamp)

Operating Conditions 0–40°C, <80% RH (non-condensing)

Frame Height 1.5–2.2m (adjustable)
