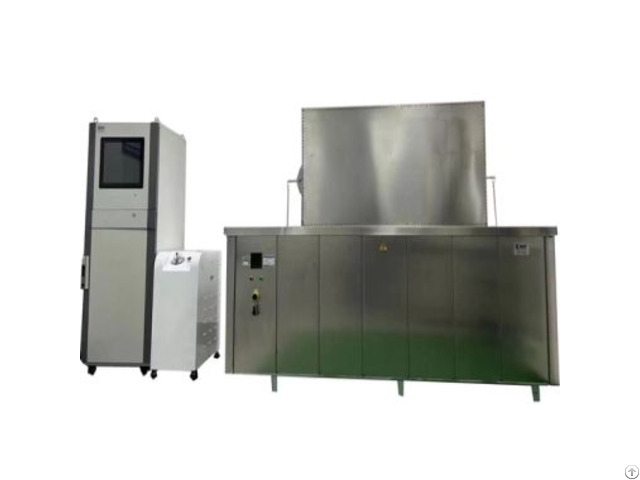

Plastic Pipe Pressure Burst Strength Tester - China

Standard

ISO 1167: For thermoplastics pipe systems under constant internal pressure.

ASTM D 1598: Standard test method for time-to-failure of plastic pipe under constant internal pressure.

ASTM D 1599: Standard test method for resistance to short-time hydraulic pressure of plastic pipe.

ASTM F1335 ISO9080 CJ/T108 Product Advantages

1 - High Precision & Quality Industry-Leading Microprocessor Controller: Achieve ultra-precise pressure regulation (±0.1% FS) with real-time TCP/IP data exchange for seamless integration with lab networks.

Advanced Calibration: Optional auto/manual pressure sensor calibration before or during tests ensures traceable accuracy.

2 - Modular Flexibility Scalable Design: Expand testing capabilities effortlessly with modular stations—adapt to diverse pipe materials (PVC, PE, PPR, etc.

) and diameters.

3 - Space-Saving Efficiency Compact Footprint: Integrate a high-pressure pump and 45 testing stations within less than 1m², optimizing lab space.

4 - Robust Performance Variable Frequency Pump: Adjusts flow dynamically to match test demands, reducing energy consumption and noise.

5 - User-Centric Safety Intuitive Interface: IPT software enables effortless parameter input, real-time status monitoring, and automated report generation (PDF/Excel).

Product Features

Smart Software Suite: Multi-user environment with role-based access control.

Wireless remote operation via mobile/tablet.

Sample database with barcode scanning and batch import/export.

Customizable report templates (ISO/ASTM compliant).

Precision Engineering: Stainless steel test chamber with anti-corrosion coating.

Dual-circuit hydraulic system for rapid pressure stabilization.

Self-diagnostics for fault alerts and maintenance reminders.

Ergonomic Design: 7-inch touchscreen with multi-language support (English, Spanish, German, Chinese).

Adjustable stand height and mobile caster base for lab mobility.

Accessories PipeTesting Pro™ Software License: Lifetime updates for data analytics.

High-Accuracy Pressure Sensors: 0.05% FS accuracy (x3 units).

Quick-Connect Fittings Kit: For 16mm–160mm pipe diameters.

Spare Parts Pack: Seals, hoses, and calibration tools.

Multilingual User Manual: PDF + hardcopy (English/Spanish).

ISO 17025 Calibration Certificate: NIST-traceable calibration.

Technical Parameters

Parameter Specification

Pressure Range 0–50 MPa (customizable up to 100 MPa)

Testing Stations 45 (expandable to 60)

Pump Type Variable Frequency Drive (VFD)

Power Supply 220V/50Hz or 110V/60Hz (CE/UL certified)

Control System PLC + HMI Touchscreen

Data Interface Ethernet (TCP/IP), USB 2.0 - Wi-Fi

Operating Environment 5–40°C, ≤85% RH (non-condensing)

Dimensions (L×W×H) 950mm × 850mm × 1800mm

Weight 450 kg (net)
