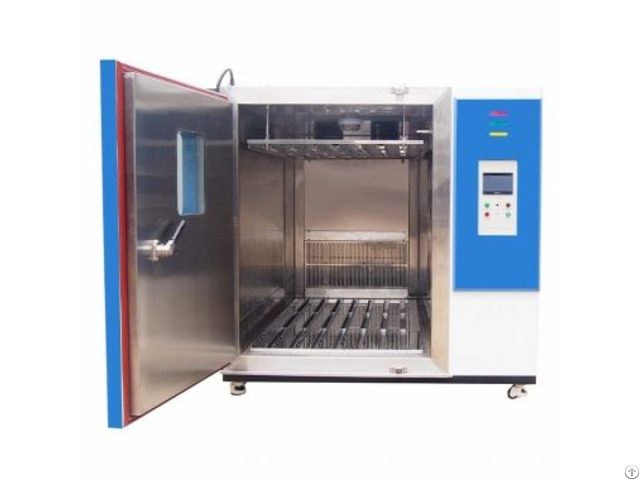

Pv Panels Testing Devices - China

Features and Benefits

1 - The capacity and performance of the workroom can be adjusted according to the size of the photovoltaic panel and your needs.

2 - The control of temperature and humidity is very accurate, and the temperature and humidity deviation of ± 2.5%RH and ± 2.0 ℃ can be reached in the workroom with large space.

3 - The sample holder can be customized, including the angle of the photovoltaic panel, the number of tests, etc.

4 - PV-panels testing devices can test in accordance with relevant international standards and regulations to ensure that photovoltaic panel products meet market access requirements.

Specifications

Model

STD PV-04 Internal Dimension (mm)

1300*700*1350 Overall Dimension (mm)

1900*1100*1750 Interior Volume

1220L Parameter

Temperature Range -60℃ ～ +100 ℃ Temperature Fluctuation

± 0.5 ℃ Temperature Deviation

± 2.0 ℃ Humidity Range

20% ~ 98% RH Humidity Deviation

± 2.5% RH Temperature Change Rate

1 ~ 3.4℃ / Min Panel Size

1M*2M Panel Capacity

4 / 6 / 8 / 10 / 12 Pieces Controller

Programmable color LCD touch screen controller Ethernet connection, PC Link, USB Humidity

Water supply system Automatic water supply Water supply system Water purification system Humidifier External isolation, stainless steel surface evaporation humidifier Dehumidification Evaporator Sensor

Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ Humidity Sensor Dry and wet bulb sensor Build-in Water Tank(mm)

270*300*450 View Window Size(mm)

330*370 Air Circulation

Centrifugal wind fan Safety Device

Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection
