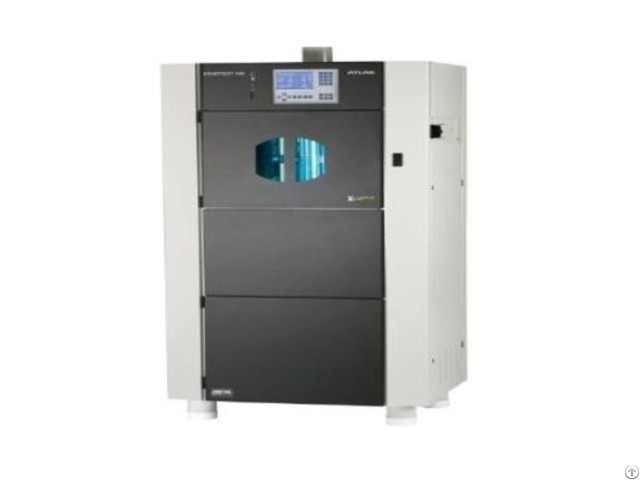

Qinsun 440 Tester - China

Standard The Qinsun 440 is engineered to meet stringent international testing standards, including ASTM G155 - ISO 105 B02 - SAE J2412 - and IEC 68-2-5 - ensuring reliable evaluation of material resistance to light, heat, and humidity.

Pre-programmed test cycles simplify compliance with industry-specific aging protocols.

Product Advantages

Innovative XenoLogic™ Technology Dual-lamp operation achieves 120 W/m² full UV irradiance while extending lamp lifespan to 4.000+ hours at standard test levels (40–60 W/m²), reducing maintenance costs.

Energy-efficient design lowers operational expenses compared to single-lamp systems.

Precision Control & Flexibility Direct adjustment of irradiance (300–400 nm), black standard temperature (BST, up to 115°C), chamber temperature (CHT, up to 65°C), and humidity (10–75% RH).

Dual temperature control mode (BST + CHT) for accelerated aging simulations.

User-Centric Design Intuitive 7" color touchscreen with multilingual support (13 languages).

Store 10 custom test profiles and access real-time diagnostic data.

UV-resistant observation window for safe in-process monitoring.

Scalable Testing Capacity Rotating sample holder with 38–11 testing positions (adjustable for varying specimen sizes).

Optional spray system for corrosive environment simulations.

Product Features

Light Source: Dual 2.200W air-cooled xenon lamps with UV-filter sleeves.

Exposure Area: 2.310 cm² (optimized for uniform irradiance distribution).

Humidity Management: Ultrasonic humidifier with 60L integrated water tank (auto-refill).

Data Connectivity: Ethernet, RS-232 - and memory card output for remote monitoring via XenoTouch™ software.

Safety: Overheating protection, low-water alerts, and emergency stop function.

Customization: Filter sleeve options for tailored spectral distribution (e.g., window glass, extended UV).

Technical Parameters

Parameter Specification

Lamp Type Air-cooled xenon (2 × 2.200W)

Irradiance Range 300–400 nm: 30–120 W/m² (adjustable)

Temperature Control BST: RT+10°C to 115°C / CHT: RT+10°C to 65°C

Humidity Range 10–75% RH (photoperiod)

Sample Capacity 11–38 positions (variable rack sizes)

Water Tank Capacity 60L (automatic replenishment)

Power Supply 220–240V AC, 50/60Hz, 32A

Dimensions (W×D×H) 1.200 × 1.100 × 1.850 mm

Weight 450 kg

Accessories

Standard Inclusion: XENONSENSIV® RC-300-400 BST Sensor: Measures irradiance (W/m²) and BST (°C) at sample level.

Rotating Sample Holder: 38 slots for 13.5 × 4.5 cm specimens (other sizes available).

UV Filter Sleeve: Standard spectral calibration.

Optional Upgrades: Dual Temperature Control Kit: Simultaneous BST (115°C max) and CHT (65°C max) regulation.

Spray Nozzle System: For cyclic corrosion testing (saltwater compatible).

Extended Warranty: Priority technical support and lamp replacement service.
