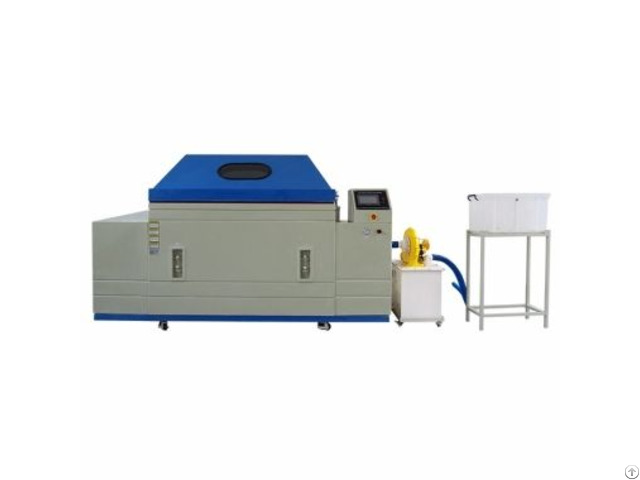

Salt Fog And So2 Corrosion Chamber - China

Features and Benefits

1 - The salt fog and SO2 corrosion chamber can realize the test under the alternating conditions of salt spray, SO2 gas, temperature and humidity.

It is mostly used for corrosion testing of automobiles, electronics and other products.

2 - The salt fog tester chamber can meet the test standards of ASTM B117 - ISO 9002 - IEC60068 and ASTM G85 and etc.

3 - The exhaust gas treatment device of the salt fog and SO2 corrosion chamber can realize the safe treatment of gas after the test and has the characteristics of high safety and good sealing.

4 - The salt fog test equipment is available in a variety of sizes, including small, medium and walk-in models.

Configuration

① Workroom

Made of corrosion-resistant materials such as glass fiber reinforced plastics.

Standard configuration features a round rod and V-shaped groove design.

Test pieces can be placed freely and angles can be adjusted as needed.

Customized insert sample holders are also available upon request.

② Spray tower

Tower sprayer, it guides the spray evenly throughout the workroom through the spray tower.

The spray nozzle is a non-crystalline glass nozzle.

③ Refrigerating system

The use of mechanical compression refrigeration, such as fully closed French TECUMSEH compressor using environmentally friendly refrigerant.

④ Air circulation system

The centrifugal fan is used to make the temperature, humidity, corrosion gas and other test parameters inside the workroom more uniform through the design of up-air and down-air circulation.

⑤ Heating system

The alloy electric heat pipe is used as the heating element, and the heating temperature can be accurately controlled by the programmable controller.

⑥ Humidity system

External isolation, stainless steel surface evaporation humidifier, which can adjust the humidity of the workroom according to the test requirements.

⑦ Control system

Programmable color LCD touch screen controller with Ethernet connectivity for remote monitoring and operation.

⑧ Saturated barrel

Used to preheat and humidify the air entering the workroom, so that the air reaches a saturated state, so as to ensure the stability and consistency of the test environment.

⑨ Salt solution tank

It is used to store the prepared salt solution.

It is connected to the spray tower through the pipe to provide the salt solution for the spray.

⑩ NAOH tank

SO2 Exhaust Device Drain SO2 into the NAOH tank.

A spray device is installed in the tank to better dilute sulfur dioxide.

Make the workplace clean and safe.

⑪ SO₂ gas cylinder

Store SO₂ gas to provide the corrosion gas needed for testing, and precisely control the flow and timing of SO₂ gas entering the workroom.

⑫Air source(option)

To provide compressed air for the spray tower, so that the salt solution can be atomized into salt spray.

Specifications

Model STD SSC-010 STD SSC-016 STD SSC-020 Internal dimensions (mm) 800*1450*680 1000*1600*800 1000*2000*900 Overall dimensions (mm) 2600×1400×1650 2750*1600*1800 3150*1600*2100 Interior Volume (L) 780 1280 1800 Temperature Range +10 ℃ ～ +90 ℃ Temperature Fluctuation ± 0.5 ℃ Temperature Deviation ± 2.0 ℃ Humidity Range 30% ~ 98% RH Humidity Deviation + 2%, - 3% Salt Fog Deposition 1～2ml / 80cm2 · h SO2 Gas Control Control and display volume of SO2 gas Cooling system Mechanical compression refrigeration system Humidifier External isolation, stainless steel surface evaporation humidifier Air Preheating Saturated air barrel Spraying System Atomizer tower and Spray nozzles Salt Fog Collected Fog collector and fog measure cylinder Sealing Pneumatic seal Controller Programmable color LCD touch screen controller, Ethernet connection Air Circulation Centrifugal wind fan SO2 Exhaust Device NAOH tank Safety Device Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection Material Glass fiber reinforced plastics Standard Configuration 8 round bars and 7 V-shaped grooves
