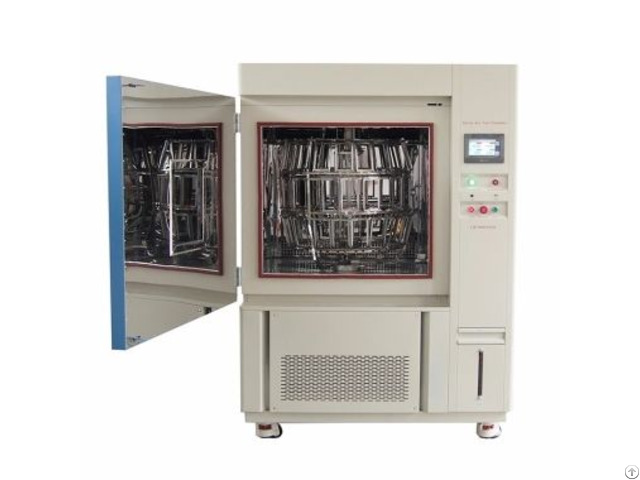

Xenon Arc Chamber - China

Features and Benefits

1 - According to different specimens, xenon aging test chamber has a variety of models to choose from; For flat specimens, rotating drum type xenon arc chamber is the best; for irregular samples, shelf type xenon arc chamber is suitable.

2 - The xenon arc chamber is equipped with a water-cooled xenon arc lamp, which has high stability and good cooling performance.

3 - The xenon arc test chamber has a variety of filters to choose from: Daylight Q, Daylight B/B, Window Q, Window B/B filters.

4 - The xenon arc chamber can be used for color fastness testing, cracking, weathering, aging testing, and meets various light aging testing standards, such as ASTM, ISO, etc.

Specifications

Model STD XL-S-750 Internal Dimension (mm) 950*950*850 mm Overall Dimension (mm) 1400*1400*1950 mm Specimen Holder Size(mm) 95*200 Specimen Capacity 42pcs Chamber Type Rotating Holder Irradiation Source 1 piece of 4500w water-cooled xenon arc lamp Irradiance Range 35~150 W/㎡ Bandwidth Measurement 300nm~400nm (340nm or 420nm) Chamber Temperature Range Ambient ～ 100 ℃ ±2℃ Black Panel Temperature BPT 35 ～ 85 ℃ ±2℃ Humidity Range 50% ~ 98% RH Humidity Deviation ± 5% RH Water Spray Cycle 1~9999H59M (Adjustable) Controller Programmable color LCD touch screen controller Water supply system Automatic water supply, Water purification system Radiometer UV Radiometer, Tolerance: ±5% Cooling System Mechanical compression refrigeration system
