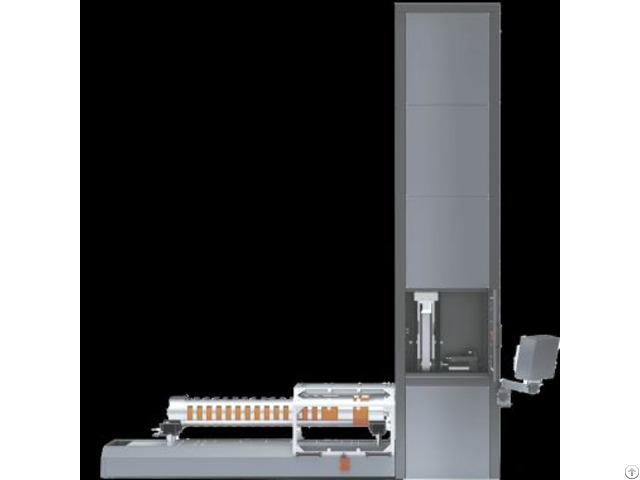

Rapid Crack Propagation Tester - China

Standard

ISO 13477: Designed exclusively for determining critical pressure (Pc) and temperature (Tc) in polyethylene pressure pipes during rapid crack propagation.

Product Advantages

1 - Robust & Adaptable Design Universal Compatibility: Tests pipes from Ø50mm to Ø500mm (1629/1671 models) with interchangeable fixtures.

Motorized Precision: Servo-driven actuator ensures repeatable impact energy delivery.

2 - Cutting-Edge Control Touchscreen Interface: Pre-programmed ISO 13477 test sequences with adjustable strike velocity (10/15/20 m/s).

Real-Time Adaptation: Auto-adjusts strike force based on pipe stiffness feedback.

3 - Safety & Accuracy Pressure Lockout: Prevents test initiation until safe containment is confirmed.

Laser Alignment: Sub-millimeter positioning of impact head and specimen.

4 - Automated Workflow Cryogenic Feeder (1671 Model): Robotic arm loads pre-chilled samples (-20°C to -40°C) into test chamber.

Self-Centering Chucks: Automatic pipe alignment reduces setup time by 60%.

5 - Data Integrity High-Speed Cameras: 2.000 fps recording of crack initiation and propagation.

AI-Assisted Analysis: Machine learning algorithms quantify crack velocity (±0.1 m/s accuracy).

Technical Parameters

Specification Model 1629 Model 1671

Max.

Pipe Ø 250 mm 500 mm

Impact Velocity 10/15/20 m/s 10/15/20 m/s

Test Pressure 0–25 Bar 0–25 Bar

Temperature Range -20°C to +60°C -40°C to +60°C

Power Supply 220V/50Hz (110V/60Hz) 380V/50Hz 3-phase

Footprint 1.500mm × 1.200mm 2.400mm × 1.800mm

Weight 850 kg (net) 1.600 kg (net)
