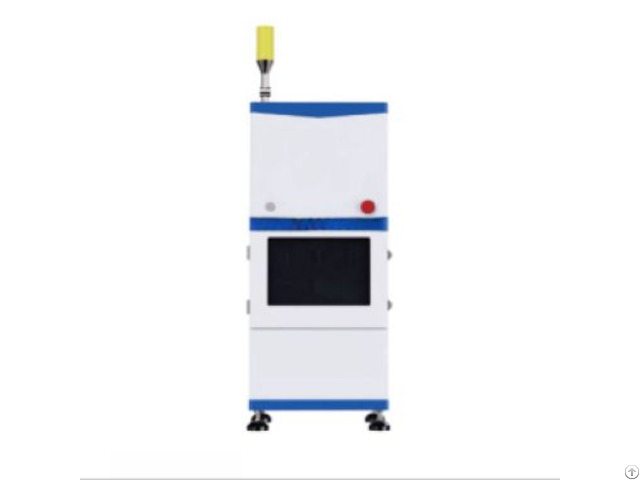

Real Time Expansion Monitoring System - China

Standard

ASTM E83: Standard Test Method for Verification of Linear Displacement Measuring Systems ISO 12417-1: Mechanical Testing of Metals – Dilation Test IEC 62660-2: Secondary Lithium-Ion Cells – Part 2: Reliability and Abuse Testing DIN 51221: Testing of Adhesives – Determination of Tensile Shear Strength CE Certification (Conformité Européenne) Product Advantages

Sub-Micron Precision 0.01 μm Resolution: Tracks nanoscale volume changes during charge/discharge cycles.

Non-Contact Laser Sensors: Eliminates mechanical interference for pristine data.

Multi-Environment Testing -40°C to 200°C Chamber: Simulates extreme climates and thermal abuse scenarios.

Pressure Cycling: 0–50 bar dynamic loading for pouch cell fatigue testing.

Real-Time 3D Imaging Structured Light Scanner: Generates volumetric strain maps at 10 fps.

AI-Powered Deformation Analysis: Quantifies anisotropic swelling in solid-state electrolytes.

High-Throughput Design 8-Channel Parallel Testing: Monitor 8 cells simultaneously under identical/custom protocols.

Auto-Sequence Programming: 50+ preloaded test profiles (fast charging, overcharge, etc.

).

Accessories Included

Testing Kit: 8x non-magnetic sample holders (coin cell, pouch cell, and prismatic formats).

Disposable strain gauges (100 pack).

Software Suite: License key for StrainVision Pro (Windows/Linux).

1-year free access to cloud-based FEA (Finite Element Analysis) tools.

Calibration & Safety: NIST-traceable displacement standard (100 μm, 500 μm).

Explosion-proof gloves (Class 00 - 3 pairs).

Environmental Control: Gas purification cartridge (99.999% inert atmosphere).

Humidity sensor with data logging.

Documentation: Multilingual quick-start guide (printed + digital).

Compliance certificates for ASTM/ISO/IEC standards.

Technical Parameters

Parameter Specification

Displacement Range ±500 μm (linear), ±1° (angular)

Accuracy ±0.1 μm (linear), ±0.01° (angular)

Temperature Range -40°C to 200°C (1°C/min ramp rate)

Data Acquisition Rate 10.000 points/second/channel

Power Supply 100-240V AC, 50/60Hz (universal adapter)

Dimensions 800mm (W) × 600mm (D) × 1.200mm (H)

Weight 220 kg (net) / 280 kg (gross)
