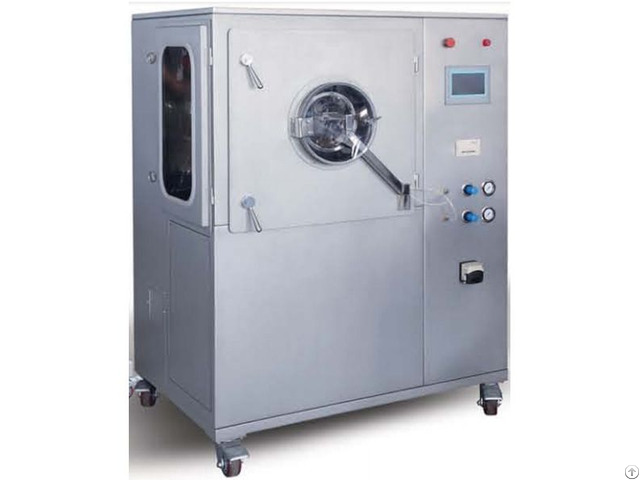

Rybg Integral High Efficiency Coating Machine - China

Support for Multiple Coating Processes: Capable of handling organic film coating, water-soluble film coating, sugar coating, chocolate coating, and more.

Enhanced Production Efficiency: Optimized material agitation and flow design improve yield and reduce batch production time.

GMP Compliance: The design includes features like interchangeable drums, CIP (Clean-In-Place) functionality, and a hygienic build, all conforming to GMP standards.

Multi-functional Integration: The machine integrates various functionalities to cater to diverse process demands

Coating pan specification: RYBG5H Coating pan diameter 12〃(300mm) 15〃(380mm) 19” (480mm) Coating pan's rim diameter 6〃 (150mm) 6〃(150mm) 8” (200mm) Working capacity 1(L/batch) 3(L/batch) 5(L/batch) Mixing guide baffle 4 (Set) 4 (Set) 4 (Set) Tablet bed depth 3〃(75mm) 4.5” (115mm) 5.5〃(140mm)

RYBG-20H Coating pan diameter 20〃(520mm) 23〃(580mm) 27” (680mm) Coating pan's rim diameter 11〃 (280mm) 11" (280mm) 11” (280mm) Working capacity 5(L/batch) 10(L/batch) 20L/batch) Mixing guide baffle 4 (Set) 4 (Set) 4 (Set) Tablet bed depth 5" (120mm) 6* (150mm) 8” (200mm)

RYBG-80H Coating pan diameter 27" (680mm) 30” (750mm) 37〃(930mm) Coating pan's rim diameter 15〃(380mm) 15/z (380mm) 15” (380mm) Working capacity 10(L/batch) 40(L/batch) 80(L/batch) Mixing guide baffle 4 (Set) 4 (Set) 4 (Set) Tablet bed depth 6〃(150mm) 7〃(175mm) 11〃(275mm)
