Safety Footwear Electrical Hazard Tester Iso 8782 - China

introduction

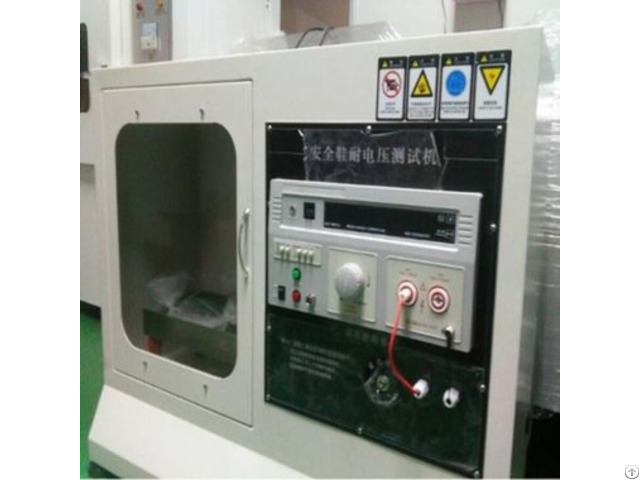

the safety shoe voltage resistance tester is mainly used to test the voltage resistance of safety shoes under specified conditions, including the measurement of ground voltage, voltage resistance time and other parameters.

through the test of the equipment, the electrical insulation performance of the safety shoes can be effectively evaluated, so as to judge whether it meets the requirements of national standards.

this is of great significance to the protection of workers' personal safety.

standard

gb12011 - iso 8782-1 - gb20991-2007 - is2.344: 2004 - ansi-241 and csa-z195 product advantages

measures critical safety property: quantifies the voltage resistance (dielectric strength) of safety footwear, which is paramount for protecting workers from electrical hazards.

standard compliant: designed to meet numerous relevant national and international standards (gb 12011 - ansi z41 - csa z195 - gb 20991 - etc.

) specifically for electrical hazard safety footwear testing.

provides objective evaluation: offers a quantitative assessment of the shoe's electrical insulation performance.

ensures compliance: helps verify that safety shoes meet the stringent voltage resistance requirements outlined in safety standards.

automated control (plc): utilizes a plc system for automated control of the test process, enhancing consistency and ease of use.

configurable test parameters: allows selection of different output voltages and adjustment of test time to meet various standard requirements.

user-friendly interface: features a touch screen for easy operation and viewing of test results.

technical parameters

control system: plc (programmable logic controller) is usually used to realize automatic control and test process.

input voltage: generally ac220v, in line with the requirements of conventional power supply.

output voltage: can be customized according to test requirements, common output voltage including ac6kv, ac20kv, ac30kv and so on.

capacity: generally 0.5kva, to ensure stable operation of the equipment during the test.

test frequency/time: the test frequency is usually 60hz, and the test time is generally 1 minute or set according to standard requirements.

touch screen: 7-inch color touch screen, support english and chinese switching, easy to operate and view the test resu
