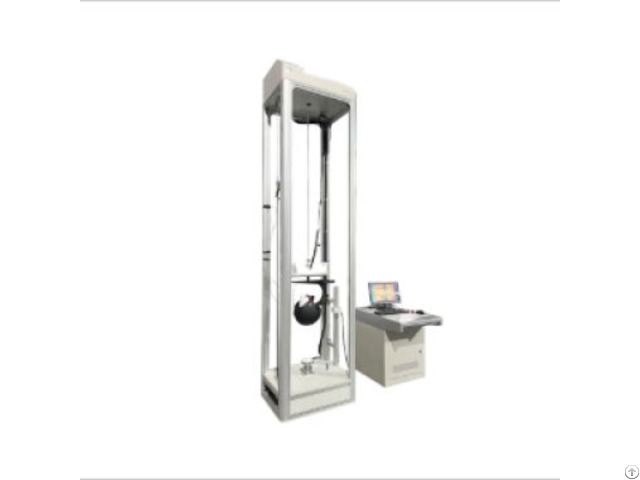

Safety Helmet Impact Acceleration Tester - China

Purpose

This instrument is suitable for impact - collision tests of helmets.

It is a testing instrument used to evaluate the impact - resistance performance of helmets.

Meanwhile, it can also meet the requirements of penetration tests.

Just replace the fixture, and it is easy to operate.

Standard

GB / T 2812-2006 - GB / T 2811-2007 Technical Parameters for Penetration Test

1 - Weight of the penetration hammer: 3.0 + 0.05kg 2 - Angle of the tip of the penetration hammer: 60±0.5° 3 - Minimum length of the tip of the penetration hammer: 40mm 4 - Hardness: 50 to 45HRC 5 - Penetration height: 1000±5mm Technical Parameters for Impact Test

Attributes: Power electronic Warranty 1 year Model HZ-8101B Tester Standard GB / T 2812-2006 - GB / T 2811-2007 Impact Hammer 5 ± 0.1kg Impact Hammer Diameter 96mm Puncturing Hammer 3 ± 0.5kg Length of the Puncturing Hammer 40mm Puncturing Hammer Diameter 28mm Hardness of the Puncturing Hammer HRC45 Force Transducer Measuring Range 0- 20KN Drop Height 1000mm Display LED Indicator 20KN Drop height 1000mm Display LED digital display Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
