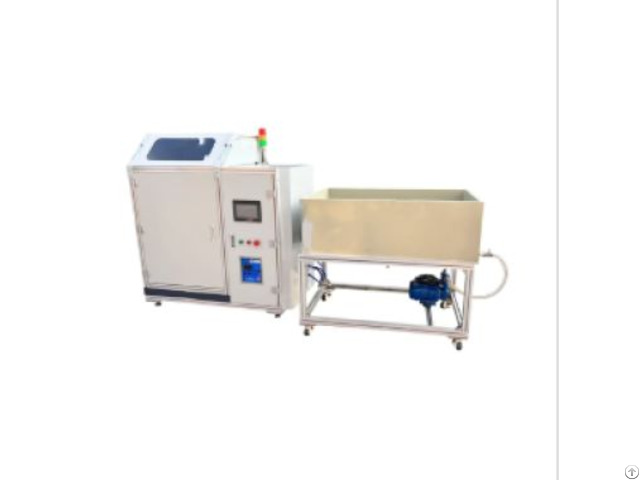

Safety Helmets Against Molten Metal Splashing Tester - China

Standard

GB/T 2812-XXXX: Safety Helmets – Test Methods for Molten Metal Resistance (Draft Standard) GB 2811-2019: Head Protection – General Technical Requirements Equivalent Compliance: ISO 13982-2 (Protective Clothing – Resistance to Molten Metal Splash) CE Certification (Conformité Européenne) Product Advantages

Extreme Temperature Validation 1.800°C Max Capacity: Simulates industrial foundry environments per GB/T 2812 - 1400°C ±20°C Precision: Ensures repeatable testing for EN/ISO certifications.

Precision Engineering 225mm ±5mm Pour Height: Replicates real-world splatter patterns with 100mm adjustability.

150g ±10g Iron Specimen: Meets 93% Fe-content requirements for metallurgical accuracy.

Safety First Dual Cooling Systems: Water-cooled control panel + forced-air test chamber.

Splash Guard: High-temperature ceramic shield protects operators during testing.

User-Centric Design 7” Touchscreen HMI: Preloaded GB/T 2812 test sequences with real-time thermal imaging.

Quick-Release Crucible: Swaps specimens in seconds for high-throughput labs.

Industrial Durability Refractory Lining: Test chamber withstands 1.800°C cyclic exposure.

304 Stainless Steel Frame: Corrosion-resistant for harsh industrial environments.

Product Features

Motorized Lift System: 0–300mm adjustable crucible height with laser-guided positioning.

Modular Head Assembly: Fits adult, child, and custom helmet sizes (50–65 cm circumference).

Dynamic Temperature Control: PID-regulated furnace with ±10°C stability.

Self-Calibrating System: Auto-tare and thermal uniformity checks before each test.

Rust-Resistant Frame: 304 stainless steel construction with ceramic-coated panels.

Accessories Included

Testing Kit: 2x Refractory Crucibles (graphite, 150g capacity).

5x Calibration Grade Thermocouples (Type K, 0–1.800°C).

Software Suite: License key for ThermalTest Pro (Windows/Linux).

1-year free access to cloud-based thermal analysis tools.

Safety Gear: 2x Heat-Resistant Gloves (EN 407 rated, 500°C).

1x Face Shield (ceramic coating, 1.800°C rated).

Maintenance Kit: Spare refractory bricks and heating elements.

Machine cleaning solution (non-corrosive).

Documentation: Multilingual quick-start guide (printed + digital).

Compliance certificates for GB/ISO standards.

Technical Parameters

Parameter Specification

Pour Height 225mm ±5mm (adjustable 100mm range)

Max Temperature 1.800°C (furnace capacity)

Standard Temperature 1.400°C ±20°C

Molten Metal Specimen 150g ±10g iron (Fe ≥93%)

Cooling System Water-cooled control panel + forced-air chamber

Power Supply 380V AC, 3-phase, 25kW

Dimensions 1.250mm (W) × 750mm (D) × 1.350mm (H)

Weight 450 kg (net)
