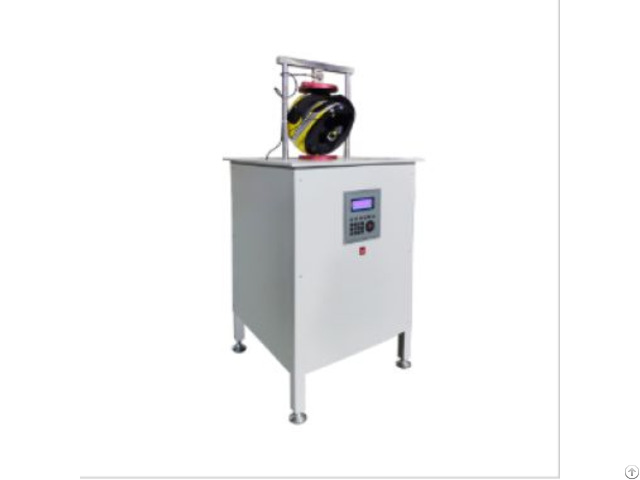

Safety Helmet Lateral Rigidity Tester - China

Standard

GB 2812: Safety Helmets (China National Standard) Equivalent Compliance: ISO 6220-2 (Industrial Safety Helmets – Lateral Deformation) CE Certification (Conformité Européenne) Product Advantages

GB 2812 Compliance 1.000N Load Capacity: Simulates extreme lateral impact forces per GB 2812 - 0.1mm Displacement Resolution: Captures subtle deformations before critical failure.

Ultra-Precise Control 1% Force Accuracy: Ensures repeatable compression testing for global certifications.

100N/min Adjustable Rate: Mimics real-world impact velocities.

User-Centric Design 7” Touchscreen HMI: Preloaded GB 2812 test sequences with auto-hold functions.

Quick-Release Helmet Clamp: Swaps samples in seconds for high-throughput labs.

Data Integrity

Built-In Data Logger: Exports force-displacement curves as PDF/CSV for audit trails.

LED Real-Time Display: Visualizes test progress and peak forces during loading.

Durability Aircraft-Grade Aluminum Frame: Resists deformation under 1.000N max load.

Corrosion-Resistant Sensors: Stainless steel construction for humid environments.

Product Features

Motorized Compression Stage: 0–500 mm/min adjustable speed with force-displacement graphing.

Modular Head Assembly: Fits adult, child, and custom helmet sizes (50–65 cm circumference).

Dynamic Force Feedback: 0.1N resolution load cell with peak force memory.

Self-Calibrating System: Auto-tare and linearity checks before each test.

Rust-Resistant Frame: 304 stainless steel construction with epoxy coating.

Accessories Included

Testing Kit: 2x Universal Helmet Clamps (adjustable for 50–65 cm heads).

5x Calibration Grade Load Cells (10N–1.000N).

Software Suite: License key for RigidityTest Pro (Windows/macOS).

1-year free access to cloud-based deformation analysis tools.

Calibration & Safety: NIST-traceable force gauge.

2x Safety Glasses (EN 166 rated).

Maintenance Kit: Spare drive belts and bearings.

Machine cleaning solution (non-corrosive).

Documentation: Multilingual quick-start guide (printed + digital).

Compliance certificates for GB/ISO standards.

Technical Parameters

Parameter Specification

Force Capacity 0–1.000N (100 kgf capacity)

Force Accuracy ±1% of reading

Displacement Resolution 0.1mm (ISO 17025 traceable)

Test Rate 100N/min ±10N/min (configurable)

Max Travel Distance 600mm (23.6”)

Power Supply 220V AC, 50/60Hz (single-phase)

Dimensions 700mm (W) × 500mm (D) × 1.300mm (H)

Weight 95 kg (net)
